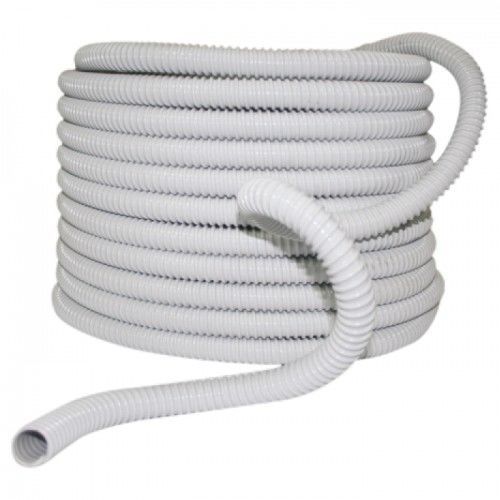

Protection spiral GGX series

Protection spiral - GGX series - ORTAC
Protection spiral - GGX series - ORTAC
Protection spiral - GGX series - ORTAC - image - 2
Add to favorites
Compare this product
Go to the ORTAC website for more information

Description

Product
PVC spiral conduit GGX series, 30 m rolls for cable protection and routing in industrial electrical installations

Technical summary
  • Material: PVC
  • Available colors: Grey (RAL7035), Black (RAL9005)
  • Temperature range: -5 °C to +70 °C
  • Standards: EN50086-1 (CEI 23-29); EN50086-2-3 (CEI 23-56); EN613086-1-2-3
  • Compression resistance: 320 N
  • Roll length: 30 m
  • Construction: smooth inner surface, rigid outer body


Technical Data - GGX series sizes
  • GGX 8 — Ø d: 8 mm — Ø d1: 12 mm — Roll length: 30 m
  • GGX 10 — Ø d: 10 mm — Ø d1: 14.5 mm — Roll length: 30 m
  • GGX 12 — Ø d: 12 mm — Ø d1: 16.3 mm — Roll length: 30 m
  • GGX 14 — Ø d: 14 mm — Ø d1: 18.6 mm — Roll length: 30 m
  • GGX 16 — Ø d: 16 mm — Ø d1: 20.5 mm — Roll length: 30 m
  • GGX 20 — Ø d: 20 mm — Ø d1: 24.7 mm — Roll length: 30 m
  • GGX 22 — Ø d: 22 mm — Ø d1: 27 mm — Roll length: 30 m
  • GGX 25 — Ø d: 25 mm — Ø d1: 30.3 mm — Roll length: 30 m
  • GGX 28 — Ø d: 28 mm — Ø d1: 33.2 mm — Roll length: 30 m
  • GGX 32 — Ø d: 32 mm — Ø d1: 37.5 mm — Roll length: 30 m
  • GGX 35 — Ø d: 35 mm — Ø d1: 40.5 mm — Roll length: 30 m
  • GGX 38 — Ø d: 38 mm — Ø d1: 44.1 mm — Roll length: 30 m
  • GGX 40 — Ø d: 40 mm — Ø d1: 46.2 mm — Roll length: 30 m
  • GGX 45 — Ø d: 45 mm — Ø d1: 51.8 mm — Roll length: 30 m
  • GGX 50 — Ø d: 50 mm — Ø d1: 57 mm — Roll length: 30 m


Characteristics / specifications
  • High flexibility for routing in confined spaces
  • Smooth inner surface to facilitate cable pulling
  • Rigid outer body for mechanical protection
  • Compression resistance: 320 N
  • Temperature range: -5 °C to +70 °C
  • Available colors: Grey (RAL7035), Black (RAL9005)
  • Roll length: 30 m


Compliance & documentation
  • Standards: EN50086-1 (CEI 23-29); EN50086-2-3 (CEI 23-56); EN613086-1-2-3
  • Technical datasheet: available (PDF)
