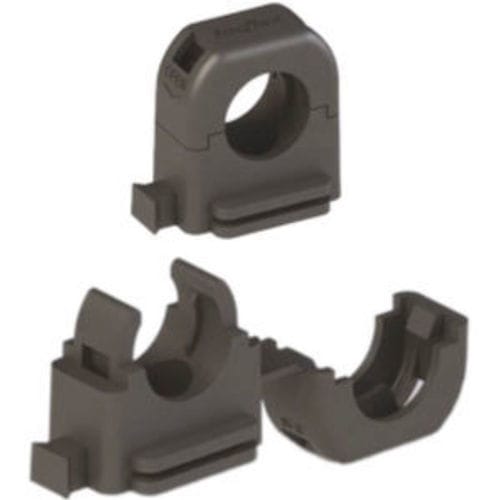

Polyamide clip ODGK 10

for conduitsPA6fixing

Overview
Polyamide clips for spiral conduits offering secure fastening compatible with PA and PP conduits. Halogen free material and easy assembly. UV resistance available on request for black versions.

Product details

• Material: Polyamid PA6 V2
• Color: Grey (RAL7031), Black (RAL9005)
• Temperature range: -40 °C to +120 °C
• Properties: UV resistance (black) on request; Easy to assemble; Halogen free
• Compatibility: For use with PA or PP spiral conduits
• Holding: Double holding from upper and bottom side
• Assembly: Side-by-side assembly possible; fixing from sides for automotive applications

Technical data (table)
Gray Code | Black Code | Spiral Code | L mm | H mm | Ø D mm
ODGK 10 | ODBK 10 | OGPA 7 | 24,5 | 15 | 10
ODGK 13 | ODBK 13 | OGPA 9 | 24,5 | 15 | 13
ODGK 15 | ODBK 15 | OGPA 11 | 30 | 21 | 15,8
ODGK 18 | ODBK 18 | OGPA 13,5 | 34 | 24 | 18,5
ODGK 21 | ODBK 21 | OGPA 16 | 39 | 28 | 21,5
ODGK 28 | ODBK 28 | OGPA 21 | 51 | 37 | 28,5
ODGK 34 | ODBK 34 | OGPA 29 | 62 | 45,5 | 35
ODGK 42 | ODBK 42 | OGPA 36 | 74,5 | 55,5 | 42,5
ODGK 54 | ODBK 54 | OGPA 48 | 95,5 | 71 | 55

Technical specifications

• Material: Polyamid PA6 V2
• Available colors: Grey (RAL7031) and Black (RAL9005)
• Operating temperature range: -40 °C to +120 °C
• UV resistance: available on request for black
• Construction: Halogen free
• Compatibility: Can be applied with PA or PP conduits
• Holding: Double holding from upper and bottom side
• Assembly: Easy to assemble; side-by-side assembly possible
• Special fixing: Fixing from sides suitable for automotive sector applications
• Available codes and dimensions: ODGK / ODBK / OGPA codes with respective L, H and Ø D as listed above
