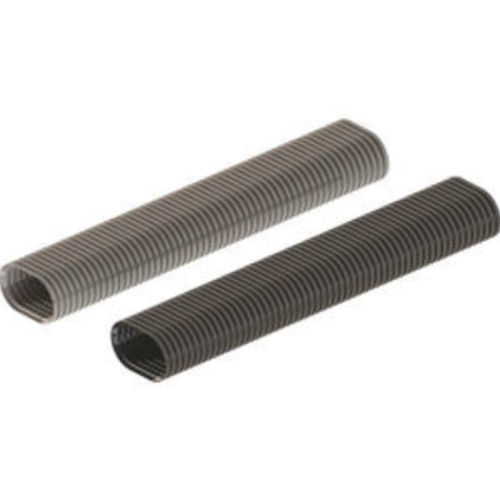

Vibration-resistant protection spiral OGPA 2034halogen-freechemical-resistantimpact-resistant
Add to favorites
Compare this product
Characteristics
- Protection level
- vibration-resistant, halogen-free, chemical-resistant, impact-resistant, high-strength, oil-resistant, UV-resistant
Description
Product overview
Key features
Technical specifications
Applications
Ordering information
- Oval corrugated spiral conduit designed for cable protection in industrial environments. Available in Polyamide PA6 (OGPA/OSPA) and Polypropylene PP (OGPP/OSPP) versions.
Key features
- Material: Polyamide PA6 (UL94 V2-V0) or Polypropylene PP
- Available colors: Gray (RAL 7031) and Black (RAL 9005)
- Temperature range: -40 °C to +120 °C
- Flammability: UL94 V2-V0
- Halogen free
- High impact strength
- Optional high UV resistance for black variant
- Vibration compliance: DIN 55442
- Chemical resistance: Resistant to solvents and oils
Technical specifications
- Product codes: OGPA 2034 / OSPA 2034 (PA6) · OGPP 2034 / OSPP 2034 (PP)
- Dimensions: e: 34.8 mm · e1: 20.6 mm · h: 39.5 mm · h1: 24.5 mm
- Wall thickness: 2.5 mm · Roll length: 50 m
- Color codes: Gray RAL 7031 · Black RAL 9005
Applications
- Machine and press environments
- Locomotive and railway systems
- Ship automation and marine equipment
- Industrial assemblies, lighting and electrical panels
Ordering information
- Standard references and sizes listed above. Contact supplier for UV-treated black variants and custom roll lengths.
