Vehicle bridge cable protector OSUV series

for heavy vehiclesfloor-mountedPA

Product overview

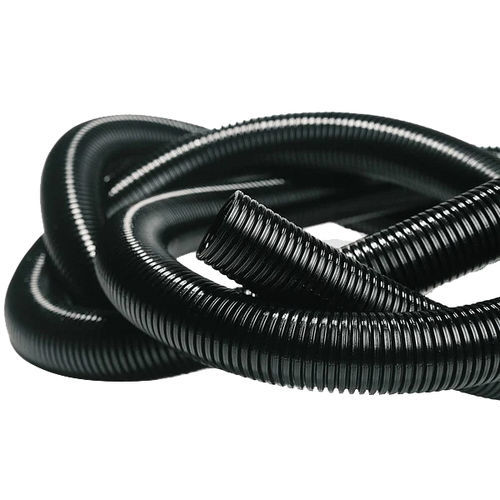

Ortac Tacflex polyamide spiral conduits designed for outdoor applications and exterior cable protection where high UV resistance is required. UV performance validated according to ISO 4892-2 (552 hours). Suitable for industrial outdoor installations, equipment housings and transportation applications.

Main characteristics

• Material: Polyamide PA6 V2
• Color: Black (RAL9005)
• Temperature range: -40 °C to +120 °C
• Flammability class: UL94 V2
• Certificates: ISO 4892-2 (552 h UV test), EN 45545-2

Properties

• High fatigue life
• High UV resistance
• High impact strength
• Halogen-free
• Self-extinguishing
• High abrasion resistance
• Full-shrink packing

Technical data (nominal / black code / d mm / d1 mm / Roll Length (m) / Min. Order (m))
7 / OSUV 7 / 6.5 / 10 / 100 / 1000
8.5 / OSUV 8,5 / 8.5 / 12 / 100 / 1000
9 / OSUV 9 / 10 / 13 / 100 / 1000
11 / OSUV 11 / 12 / 15.8 / 50 / 1000
13.5 / OSUV 13,5 / 14.2 / 18.4 / 50 / 1000
16 / OSUV 16 / 16.5 / 21.2 / 50 / 1000
19 / OSUV 19 / 19 / 23.7 / 50 / 1000
21 / OSUV 21 / 23.5 / 28.4 / 50 / 1000
26 / OSUV 26 / 26 / 30.9 / 25 / 1000
29 / OSUV 29 / 29 / 34.5 / 25 / 1000
36 / OSUV 36 / 36 / 42.5 / 25 / 500
48 / OSUV 48 / 48 / 54.5 / 25 / 500

Certificates & packing

• ISO 4892-2 UV test (552 hours)
• EN 45545-2
• Packing: full-shrink packing
