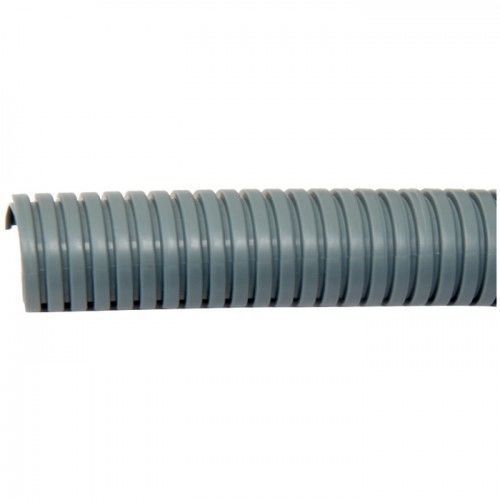

Self-extinguishing protection spiral OGPP

acid-resistant

Product
Polypropylene spiral conduits for cable protection

Product details
Material: Polypropylene
Color: Grey (RAL7031) / Black (RAL9005) / Orange or other colors available on request
Temperature range: -20 °C to +90 °C

Properties

• Self-extinguishing
• Full-shrink packing
• Acid resistant

Technical data
Nominal diameter | Gray code (RAL 7031) | Black code (RAL 9005) | d Ø mm | d1 Ø mm | Roll length m
7 | OGPP 7 | OSPP 7 | 6.5 | 10 | 100
8.5 | OGPP 8.5 | OSPP 8.5 | 8.5 | 12 | 100
9 | OGPP 9 | OSPP 9 | 10 | 13 | 100
11 | OGPP 11 | OSPP 11 | 12 | 15.8 | 50
13.5 | OGPP 13.5 | OSPP 13.5 | 14.2 | 18.4 | 50
16 | OGPP 16 | OSPP 16 | 16.5 | 21.2 | 50
21 | OGPP 21 | OSPP 21 | 23.5 | 28.4 | 50
29 | OGPP 29 | OSPP 29 | 29 | 34.5 | 25
36 | OGPP 36 | OSPP 36 | 36 | 42.5 | 25
48 | OGPP 48 | OSPP 48 | 48 | 54.5 | 25

Features / technical specifications

• Material: Polypropylene
• Available colors: Grey (RAL7031), Black (RAL9005), Orange or other colors on request
• Temperature range: -20 °C to +90 °C
• Properties: Self-extinguishing; Full-shrink packing; Acid resistant
• Available series/codes: OGPP and OSPP (size-specific codes listed in Technical data)
• Available nominal diameters (mm): 7; 8.5; 9; 11; 13.5; 16; 21; 29; 36; 48
• Typical roll lengths (m): 25, 50 or 100 depending on diameter (see Technical data)
