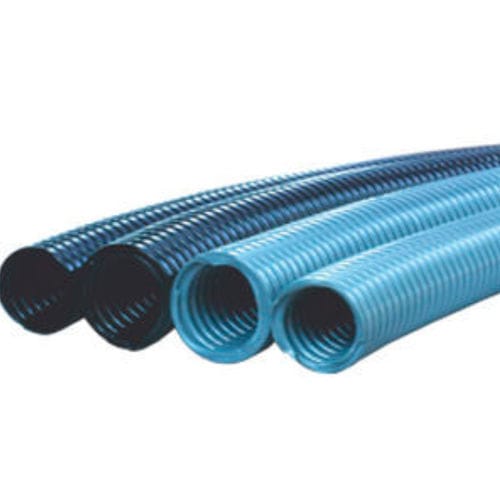

Impact-resistant protection spiral OSPA V0 series

halogen-freeself-extinguishingUV-resistant

Product
Plastic V0 Spiral Conduits

Overview
Polyamid PA6 V0 spiral conduits designed for cable protection with halogen-free, self-extinguishing properties and high mechanical resistance.

Material and Standards
Material: Polyamid PA6 V0
Certificate: EN 45545-2
Flammability class: UL94 V0

Color and Temperature
Color: Grey (RAL7031), Black (RAL9005); Orange or other colors available on request
Temperature range: -40 °C to +120 °C

Key Properties

• High fatigue life
• High impact strength
• Halogen free
• Self extinguishing
• High abrasion resistance
• High UV resistance (black) on request
• Full-shrink packing

Technical Data (nominal / codes / dimensions / roll length)
Nominal Diameter 9 — Black Code: OSPA V0 9 — Gray Code: OGPA V0 9 — d: 10 Ø mm — d1: 13 Ø mm — Roll Length: 100 m
Nominal Diameter 11 — Black Code: OSPA V0 11 — Gray Code: OGPA V0 11 — d: 12 Ø mm — d1: 15,8 Ø mm — Roll Length: 50 m
Nominal Diameter 13,5 — Black Code: OSPA V0 13,5 — Gray Code: OGPA V0 13,5 — d: 14,4 Ø mm — d1: 18,4 Ø mm — Roll Length: 50 m
Nominal Diameter 16 — Black Code: OSPA V0 16 — Gray Code: OGPA V0 16 — d: 16,5 Ø mm — d1: 21,2 Ø mm — Roll Length: 50 m
Nominal Diameter 21 — Black Code: OSPA V0 21 — Gray Code: OGPA V0 21 — d: 23,5 Ø mm — d1: 28,4 Ø mm — Roll Length: 50 m
Nominal Diameter 29 — Black Code: OSPA V0 29 — Gray Code: OGPA V0 29 — d: 29 Ø mm — d1: 34,5 Ø mm — Roll Length: 25 m
Nominal Diameter 36 — Black Code: OSPA V0 36 — Gray Code: OGPA V0 36 — d: 36 Ø mm — d1: 42,5 Ø mm — Roll Length: 25 m
Nominal Diameter 48 — Black Code: OSPA V0 48 — Gray Code: OGPA V0 48 — d: 48 Ø mm — d1: 54,5 Ø mm — Roll Length: 25 m

Characteristics / Technical specifications

• Material: Polyamid PA6 V0
• Flammability: UL94 V0
• Certificate: EN 45545-2
• Temperature range: -40 °C to +120 °C
• Available colors: Grey (RAL7031), Black (RAL9005), Orange and other colors on request
• Properties: high fatigue life, high impact strength, halogen free, self extinguishing, high abrasion resistance, high UV resistance (black) on request
• Packing: Full-shrink packing
• Available nominal diameters and roll lengths: 9 (100 m), 11 (50 m), 13.5 (50 m), 16 (50 m), 21 (50 m), 29 (25 m), 36 (25 m), 48 (25 m)
