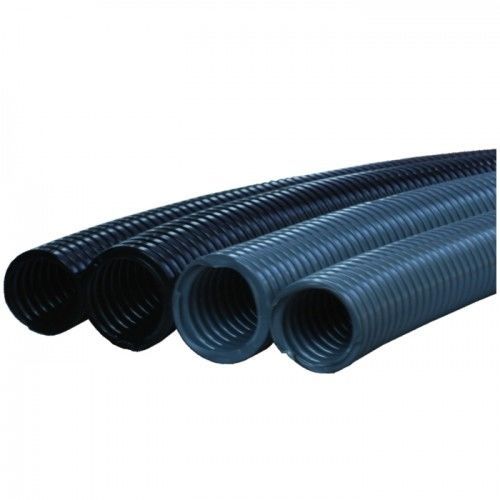

PA6 cable protector OGPA 7

Product
Spiral conduit PA6 (Polyamide PA6 V2) for cable protection in industrial and transport applications.

Material and Certification
Material: Polyamide PA6 V2
Certificate: EN45545-2

Color
Grey (RAL 7031), Black (RAL 9005). Orange or other colors available on request.

Temperature range
-40 °C to +120 °C

Flammability class
UL94 V2

Properties

• High fatigue life
• High impact strength
• Halogen-free
• Self-extinguishing
• High abrasion resistance
• Full-shrink packing

Technical Data
Nominal diameter | Gray code RAL 7031 | Black code RAL 9005 | d Ø mm | d1 Ø mm | Roll length m.
7 | OGPA 7 | OSPA 7 | 6.5 | 10 | 100
8.5 | OGPA 8.5 | OSPA 8.5 | 8.5 | 12 | 100
9 | OGPA 9 | OSPA 9 | 10 | 13 | 100
11 | OGPA 11 | OSPA 11 | 12 | 15.8 | 50
13.5 | OGPA 13.5 | OSPA 13.5 | 14.2 | 18.4 | 50
16 | OGPA 16 | OSPA 16 | 16.5 | 21.2 | 50
19 | OGPA 19 | OSPA 19 | 19 | 24 | 50
21 | OGPA 21 | OSPA 21 | 23.5 | 28.4 | 50
26 | OGPA 26 | OSPA 26 | 26 | 31 | 50
29 | OGPA 29 | OSPA 29 | 29 | 34.5 | 25
36 | OGPA 36 | OSPA 36 | 36 | 42.5 | 25
48 | OGPA 48 | OSPA 48 | 48 | 54.5 | 25

Technical specifications

• Material: Polyamide PA6 V2
• Colors: Grey (RAL7031), Black (RAL9005); Orange or other colors on request
• Temperature range: -40 °C to +120 °C
• Flammability class: UL94 V2
• Certificate: EN45545-2
• Properties: High fatigue life; High impact strength; Halogen-free; Self-extinguishing; High abrasion resistance; Full-shrink packing
• Available nominal diameters and series codes (OGPA / OSPA): 7, 8.5, 9, 11, 13.5, 16, 19, 21, 26, 29, 36, 48 mm with corresponding d and d1 values and roll lengths as listed above
