Threaded adapter AP1 TYPE
malefemalefor cables

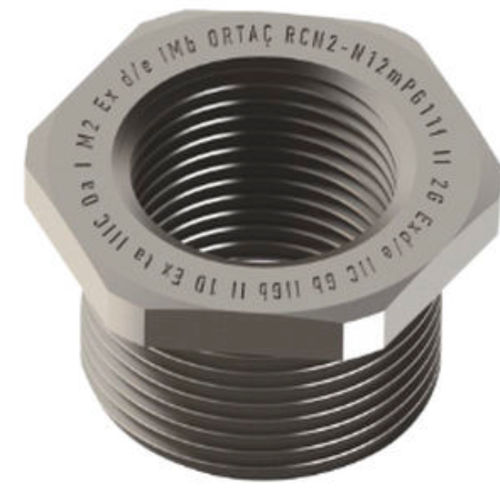

Threaded adapter - AP1 TYPE - ORTAC - male / female / for cables
Threaded adapter - AP1 TYPE - ORTAC - male / female / for cables
Threaded adapter - AP1 TYPE - ORTAC - male / female / for cables - image - 2
Add to favorites
Compare this product
Go to the ORTAC website for more information

Characteristics

Connector type
threaded, female, male
Applications
for cables
Material
stainless steel, brass, nickel-plated brass
Other characteristics
straight, NPT, waterproof, explosion-proof
Diameter

Max.: 110 mm
(4.331 in)

Min.: 6.35 mm
(0.25 in)

Length

Max.: 54 mm
(2.13 in)

Min.: 19 mm
(0.75 in)

Description

Product
  • Type: AP1 TYPE ADAPTER
  • Models: AP1XX / APXX — multiple thread conversions Mx / NPT


Protection code / Certificate / Material / Standards / O-ring / Temperature range / Protection class / Application area
  • Protection code: I M2 Ex db I Mb / I M2 Ex eb I Mb II 2G Ex db IIC Gb II 2G Ex eb II Gb II 1D Ex ta IIIC Da
  • Certificate: IEP 15 ATEX 0333U
  • Material: Brass, brass with nickel plated, stainless steel
  • Standards: EN 60079-0 2012 / 60079-1 2007 / 60079-7 2007 / 60079-31 2009
  • O-ring: NBR / Silicone
  • Temperature range: -40 °C to +100 °C
  • Protection class: IP66-IP68
  • Application area: ZONE 1, ZONE 2, ZONE 21, ZONE 22 — Gas groups IIA, IIB, IIC


Technical Data (product / size table)
  • M16 x 1,5 — AP1XX/M16m-N14f — NPT 1/4" — GL min. 15 mm — H 19 mm — SW 22 mm
  • M20 x 1,5 — AP1XX/M20m-N14f — NPT 1/4" — GL min. 15 mm — H 19 mm — SW 25 mm
  • M25 x 1,5 — AP1XX/M25m-N12f — NPT 1/2" — GL min. 15 mm — H 19 mm — SW 30 mm
  • M32 x 1,5 — AP1XX/M32m-N12f — NPT 1/2" — GL min. 15 mm — H 19 mm — SW 36 mm
  • M32 x 1,5 — AP1XX/M32m-N34f — NPT 3/4" — GL min. 15 mm — H 19 mm — SW 36 mm
  • M40 x 1,5 — AP1XX/M40m-N34f — NPT 3/4" — GL min. 18 mm — H 22 mm — SW 45 mm
  • M40 x 1,5 — AP1XX/M40m-N100f — NPT 1" — GL min. 18 mm — H 22 mm — SW 45 mm
  • M50 x 1,5 — AP1XX/M50m-N100f — NPT 1" — GL min. 18 mm — H 23 mm — SW 55 mm
  • M50 x 1,5 — AP1XX/M50m-N114f — NPT 1 1/4" — GL min. 18 mm — H 23 mm — SW 55 mm
  • M63 x 1,5 — AP1XX/M63m-N114f — NPT 1 1/4" — GL min. 18 mm — H 23 mm — SW 70 mm
  • M63 x 1,5 — AP1XX/M63m-N112f — NPT 1 1/2" — GL min. 18 mm — H 23 mm — SW 70 mm
  • M75 x 1,5 — AP1XX/M75m-N112f — NPT 1 1/2" — GL min. 18 mm — H 24 mm — SW 85 mm
  • M75 x 1,5 — AP1XX/M75m-N200f — NPT 2" — GL min. 18 mm — H 24 mm — SW 85 mm
  • M90 x 1,5 — AP1XX/M90m-N200f — NPT 2" — GL min. 21 mm — H 29 mm — SW 100 mm
  • M90 x 1,5 — AP1XX/M90m-N212f — NPT 2 1/2" — GL min. 31 mm — H 41 mm — SW 100 mm
  • M110 x 1,5 — AP1XX/M110m-N212f — NPT 2 1/2" — GL min. 31 mm — H 41 mm — SW 120 mm
  • M110 x 1,5 — AP1XX/M110m-N300f — NPT 3" — GL min. 33 mm — H 43 mm — SW 120 mm
  • NPT 3/8" — AP1XX/N38m-M12f — M12 x 1,5 — GL min. 15 mm — H 19 mm — SW 22 mm
  • NPT 1/2" — AP1XX/N12m-M12f — M12 x 1,5 — GL min. 15 mm — H 19 mm — SW 25 mm
  • NPT 1/2" — AP1XX/N12m-M16f — M16 x 1,5 — GL min. 15 mm — H 19 mm — SW 25 mm
  • NPT 3/4" — AP1XX/N34m-M16f — M16 x 1,5 — GL min. 15 mm — H 19 mm — SW 30 mm
  • NPT 3/4" — AP1XX/N34m-M20f — M20 x 1,5 — GL min. 15 mm — H 19 mm — SW 30 mm
  • NPT 1" — AP1XX/N100m-M20f — M20 x 1,5 — GL min. 15 mm — H 19 mm — SW 36 mm
  • NPT 1" — AP1XX/N100m-M25f — M25 x 1,5 — GL min. 15 mm — H 19 mm — SW 36 mm
  • NPT 1 1/4" — AP1XX/N114m-M25f — M25 x 1,5 — GL min. 18 mm — H 22 mm — SW 45 mm
  • NPT 1 1/4" — AP1XX/N114m-M32f — M32 x 1,5 — GL min. 18 mm — H 22 mm — SW 45 mm
  • NPT 1 1/2" — AP1XX/N112m-M32f — M32 x 1,5 — GL min. 18 mm — H 23 mm — SW 55 mm
  • NPT 1 1/2" — AP1XX/N112m-M40f — M40 x 1,5 — GL min. 18 mm — H 23 mm — SW 55 mm
  • NPT 2" — AP1XX/N200m-M40f — M40 x 1,5 — GL min. 18 mm — H 23 mm — SW 65 mm
  • NPT 2" — AP1XX/N200m-M50f — M50 x 1,5 — GL min. 18 mm — H 23 mm — SW 65 mm
  • NPT 2 1/2" — AP1XX/N212m-M50f — M50 x 1,5 — GL min. 28 mm — H 34 mm — SW 75 mm
  • NPT 2 1/2" — AP1XX/N212m-M63f — M63 x 1,5 — GL min. 28 mm — H 34 mm — SW 75 mm
  • NPT 3" — AP1XX/N300m-M63f — M63 x 1,5 — GL min. 28 mm — H 36 mm — SW 95 mm
  • NPT 3" — AP1XX/N300m-M75f — M75 x 1,5 — GL min. 28 mm — H 36 mm — SW 95 mm
  • NPT 4" — AP1XX/N400m-M75f — M75 x 1,5 — GL min. 28 mm — H 38 mm — SW 120 mm
  • NPT 4" — AP1XX/N400m-M90f — M90 x 1,5 — GL min. 28 mm — H 38 mm — SW 120 mm
  • NPT 2" — APXX/N200m-M63f — M63 x 1,5 — GL min. 18 mm — H 40,5 mm — SW 70 mm
  • NPT 2" — APXX/N200m-M75f — M75 x 1,5 — GL min. 18 mm — H 40,5 mm — SW 80 mm
  • NPT 2 1/2" — APXX/N212m-M75f — M75 x 1,5 — GL min. 28 mm — H 50,5 mm — SW 80 mm
  • NPT 2 1/2" — APXX/N212m-M90f — M90 x 1,5 — GL min. 28 mm — H 50,5 mm — SW 95 mm
  • NPT 3" — APXX/N300m-M90f — M90 x 1,5 — GL min. 28 mm — H 54 mm — SW 95 mm
  • NPT 3" — APXX/N300m-M110f — M110 x 1,5 — GL min. 28 mm — H 54 mm — SW 115 mm
  • NPT 4" — APXX/N400m-M110f — M110 x 1,5 — GL min. 28 mm — H 54 mm — SW 120 mm


Documents / Datasheets
  • Technical Datasheet available for Ex-Proof Adapters AP1 (technical PDF provided on the product page).
