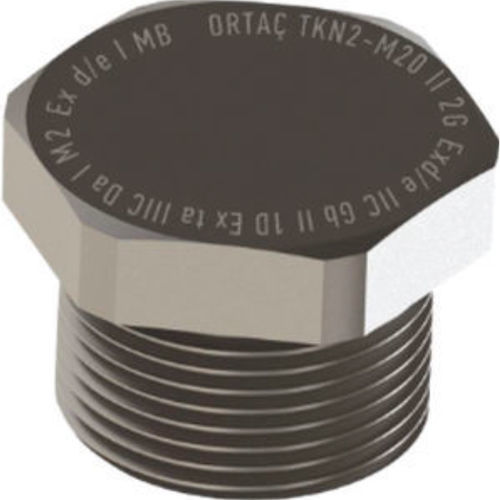

Hexagonal plug TKXX/M12

threadedstainless steelbrass

Product
Ex TK Type Stopper Plug

Technical details

• Type: TK TYPE STOPPER PLUG
• Protection code: I M2 Ex db I Mb / I M2 Ex eb I Mb II 2G Ex db IIC Gb II 2G Ex eb II Gb II 1D Ex ta IIIC Da
• Certificate: IEP 15 ATEX 0333U
• Material: Brass, brass with nickel plated, stainless steel
• Standards: EN 60079-0 2012 / 60079-1 2007 / 60079-7 2007 / 60079-31 2009
• O-ring: NBR / Silicone
• Temperature range: -40 °C to +100 °C
• Protection class: IP66 - IP68
• Application area: ZONE 1, ZONE 2, ZONE 21, ZONE 22; Gas groups IIA, IIB, IIC

Metric sizes (product code / GL min. mm / H mm / SW mm)
Product Size | Product Code | GL min. mm | H mm | SW mm
M12 x 1,5 | TKXX/M12 | 15 | 22 | 17
M16 x 1,5 | TKXX/M16 | 15 | 22 | 22
M20 x 1,5 | TKXX/M20 | 15 | 22 | 24
M25 x 1,5 | TKXX/M25 | 15 | 22 | 30
M32 x 1,5 | TKXX/M32 | 15 | 22 | 36
M40 x 1,5 | TKXX/M40 | 15 | 22 | 45
M50 x 1,5 | TKXX/M50 | 15 | 22 | 55
M63 x 1,5 | TKXX/M63 | 15 | 22 | 70
M75 x 1,5 | TKXX/M75 | 15 | 22 | 80
M90 x 2 | TKXX/M90 | 20 | 27 | 95
M100 x 2 | TKXX/M100 | 20 | 27 | 110

NPT sizes (product code / GL min. mm / H mm / SW mm)
NPT 1/4" | TKXX/N14 | 15 | 22 | 15
NPT 3/8" | TKXX/N38 | 15 | 22 | 20
NPT 1/2" | TKXX/N12 | 15 | 22 | 24
NPT 3/4" | TKXX/N34 | 15 | 22 | 27
NPT 1" | TKXX/N100 | 15 | 22 | 35
NPT 1 1/4" | TKXX/N114 | 18 | 25 | 45
NPT 1 1/2" | TKXX/N112 | 18 | 25 | 50
NPT 2" | TKXX/N200 | 18 | 25 | 65
NPT 2 1/2" | TKXX/N212 | 28 | 35 | 75
NPT 3" | TKXX/N300 | 28 | 35 | 90
NPT 4" | TKXX/N400 | 28 | 35 | 115

GAS sizes (product code / GL min. mm / H mm / SW mm)
G 1/4" | TKXX/G14 | 15 | 22 | 18
G 3/8" | TKXX/G38 | 15 | 22 | 22
G 1/2" | TKXX/G12 | 15 | 22 | 25
G 3/4" | TKXX/G34 | 15 | 22 | 32
G 1" | TKXX/G100 | 15 | 22 | 38
G 1 1/4" | TKXX/G114 | 15 | 22 | 45
G 1 1/2" | TKXX/G112 | 15 | 22 | 55
G 2" | TKXX/G200 | 15 | 22 | 65
G 2 1/2" | TKXX/G212 | 20 | 27 | 85
G 3" | TKXX/G300 | 20 | 27 | 95
G 4" | TKXX/G400 | 20 | 27 | 120

PG sizes (product code / GL min. mm / H mm / SW mm)
PG7 | TKXX/P7 | 15 | 22 | 17
PG9 | TKXX/P9 | 15 | 22 | 20
PG11 | TKXX/P11 | 15 | 22 | 25
PG13,5 | TKXX/P13 | 15 | 22 | 25
PG16 | TKXX/P16 | 15 | 22 | 27
PG21 | TKXX/P21 | 15 | 22 | 35
PG29 | TKXX/P29 | 15 | 22 | 42
PG36 | TKXX/P36 | 15 | 22 | 55
PG42 | TKXX/P42 | 15 | 22 | 60
PG48 | TKXX/P48 | 15 | 22 | 65

Characteristics / technical specifications

• Type: TK TYPE STOPPER PLUG
• Protection code: I M2 Ex db I Mb / I M2 Ex eb I Mb II 2G Ex db IIC Gb II 2G Ex eb II Gb II 1D Ex ta IIIC Da
• Certificate: IEP 15 ATEX 0333U
• Materials available: Brass, brass with nickel plating, Stainless Steel
• Standards compliance: EN 60079-0 (2012), EN 60079-1 (2007), EN 60079-7 (2007), EN 60079-31 (2009)
• Sealing O-ring options: NBR or Silicone
• Operating temperature range: -40 °C to +100 °C
• Ingress protection: IP66 to IP68
• Intended application zones: Zone 1, Zone 2, Zone 21, Zone 22 (Gas groups IIA, IIB, IIC)
• Available thread standards and sizes: Metric, NPT, GAS, PG (detailed sizes listed above)
