Female adapter RC series
threadedthreadmale

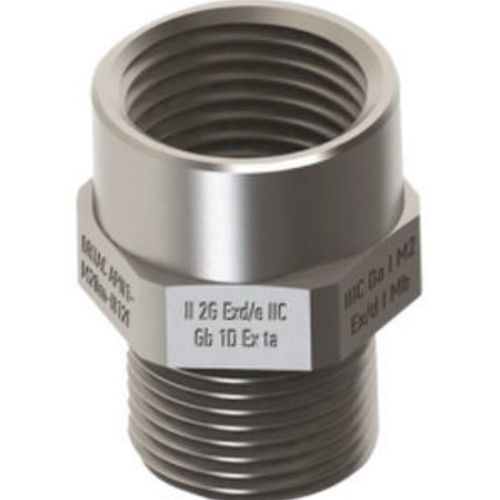

Female adapter - RC series - ORTAC - threaded / thread / male
Female adapter - RC series - ORTAC - threaded / thread / male
Female adapter - RC series - ORTAC - threaded / thread / male - image - 2
Add to favorites
Compare this product
Go to the ORTAC website for more information

Characteristics

Connector type
female, threaded, thread, male
Applications
reduction, reducing
Material
nickel-plated brass, stainless steel, brass
Other characteristics
NPT, with O-ring, explosion-proof
Diameter

Max.: 110 mm
(4.331 in)

Min.: 6.35 mm
(0.25 in)

Length

Max.: 28 mm
(1.1 in)

Min.: 15 mm
(0.59 in)

Description

Product
Explosion-proof enlarger reducer RC Type RCXX

Overview / Key information
  • Type: RC TYPE ENLARGER REDUCER
  • Protection code: I M2 Ex db I Mb; I M2 Ex eb I Mb; II 2G Ex db IIC Gb; II 2G Ex eb II Gb; II 1D Ex ta IIIC Da
  • Certificate: IEP 15 ATEX 0333U
  • Materials: Brass; Brass with nickel plating; Stainless steel
  • Standards: EN 60079-0:2012; EN 60079-1:2007; EN 60079-7:2007; EN 60079-31:2009
  • O-ring: NBR or Silicone
  • Temperature range: -40 °C to +100 °C
  • Ingress protection: IP66 to IP68
  • Application zones: Zone 1, Zone 2, Zone 21, Zone 22 (Gas groups IIA, IIB, IIC)


Technical Data
Product Size | Product Code | IG (F) | GL mm | H mm | SW mm
  • M12 x 1.5 | RCXX/M12m-M12f | M12 x 1.5 | 15 | 33.5 | 18
  • M12 x 1.5 | RCXX/M12m-M16f | M16 x 1.5 | 15 | 33.5 | 22
  • M16 x 1.5 | RCXX/M16m-M16f | M16 x 1.5 | 15 | 33.5 | 22
  • M12 x 1.5 | RCXX/M12m-M20f | M20 x 1.5 | 15 | 34 | 25
  • M16 x 1.5 | RCXX/M16m-M20f | M20 x 1.5 | 15 | 34 | 25
  • M20 x 1.5 | RCXX/M20m-M20f | M20 x 1.5 | 15 | 34 | 25
  • M16 x 1.5 | RCXX/M16m-M25f | M25 x 1.5 | 15 | 34 | 30
  • M20 x 1.5 | RCXX/M20m-M25f | M25 x 1.5 | 15 | 34 | 30
  • M25 x 1.5 | RCXX/M25m-M25f | M25 x 1.5 | 15 | 34 | 30
  • M20 x 1.5 | RCXX/M20m-M32f | M32 x 1.5 | 15 | 34 | 36
  • M25 x 1.5 | RCXX/M25m-M32f | M32 x 1.5 | 15 | 34 | 36
  • M32 x 1.5 | RCXX/M32m-M32f | M32 x 1.5 | 15 | 34 | 36
  • M25 x 1.5 | RCXX/M25m-M40f | M40 x 1.5 | 15 | 37 | 45
  • M32 x 1.5 | RCXX/M32m-M40f | M40 x 1.5 | 15 | 37 | 45
  • M40 x 1.5 | RCXX/M40m-M40f | M40 x 1.5 | 18 | 40 | 45
  • M32 x 1.5 | RCXX/M32m-M50f | M50 x 1.5 | 15 | 40 | 55
  • M40 x 1.5 | RCXX/M40m-M50f | M50 x 1.5 | 18 | 40 | 55
  • M50 x 1.5 | RCXX/M50m-M50f | M50 x 1.5 | 18 | 40 | 55
  • M50 x 1.5 | RCXX/M50m-M63f | M63 x 1.5 | 18 | 40.5 | 70
  • M63 x 1.5 | RCXX/M63m-M63f | M63 x 1.5 | 18 | 40.5 | 70
  • M63 x 1.5 | RCXX/M63m-M75f | M75 x 1.5 | 18 | 40.5 | 80
  • M75 x 1.5 | RCXX/M75m-M75f | M75 x 1.5 | 18 | 40.5 | 85
  • M75 x 1.5 | RCXX/M75m-M90f | M90 x 1.5 | 18 | 43.5 | 95
  • M90 x 1.5 | RCXX/M90m-M90f | M90 x 1.5 | 21 | 47 | 100
  • M90 x 1.5 | RCXX/M90m-M110f | M110 x 1.5 | 21 | 47 | 115
  • M110 x 1.5 | RCXX/M110m-M110f | M110 x 1.5 | 21 | 47 | 120
  • NPT 1/4" | RCXX/N14m-N14f | NPT 1/4" | 15 | 33.5 | 18
  • NPT 1/4" | RCXX/N14m-N38f | NPT 3/8" | 15 | 33.5 | 20
  • NPT 3/8" | RCXX/N38m-N38f | NPT 3/8" | 15 | 33.5 | 20
  • NPT 3/8" | RCXX/N38m-N12f | NPT 1/2" | 15 | 34 | 25
  • NPT 1/2" | RCXX/N12m-N12f | NPT 1/2" | 15 | 34 | 25
  • NPT 1/2" | RCXX/N12m-N34f | NPT 3/4" | 15 | 34 | 30
  • NPT 3/4" | RCXX/N34m-N34f | NPT 3/4" | 15 | 34 | 32
  • NPT 3/4" | RCXX/N34m-N100f | NPT 1" | 15 | 34 | 36
  • NPT 1" | RCXX/N100m-N100f | NPT 1" | 15 | 34 | 36
  • NPT 1" | RCXX/N100m-N114f | NPT 1 1/4" | 15 | 37 | 45
  • NPT 1 1/4" | RCXX/N114m-N114f | NPT 1 1/4" | 18 | 40.5 | 45
  • NPT 1 1/4" | RCXX/N114m-N112f | NPT 1 1/2" | 18 | 40.5 | 55
  • NPT 1 1/2" | RCXX/N112m-N112f | NPT 1 1/2" | 18 | 40.5 | 55
  • NPT 1 1/2" | RCXX/N112m-N200f | NPT 2" | 18 | 40.5 | 65
  • NPT 2" | RCXX/N200m-N200f | NPT 2" | 18 | 40.5 | 65
  • NPT 2" | RCXX/N200m-N212f | NPT 2 1/2" | 18 | 50.5 | 80
  • NPT 2 1/2" | RCXX/N212m-N212f | NPT 2 1/2" | 28 | 61 | 80
  • NPT 2 1/2" | RCXX/N212m-N300f | NPT 3" | 28 | 61 | 95
  • NPT 3" | RCXX/N300m-N300f | NPT 3" | 28 | 61 | 95
  • NPT 3" | RCXX/N300m-N400f | NPT 4" | 28 | 61 | 120
  • NPT 4" | RCXX/N400m-N400f | NPT 4" | 28 | 61 | 120


Characteristics / Technical specifications
  • Type: RC TYPE ENLARGER REDUCER
  • Protection code: I M2 Ex db I Mb; I M2 Ex eb I Mb; II 2G Ex db IIC Gb; II 2G Ex eb II Gb; II 1D Ex ta IIIC Da
  • Certificate: IEP 15 ATEX 0333U
  • Materials available: Brass; Brass with nickel plating; Stainless steel
  • Standards: EN 60079-0:2012; EN 60079-1:2007; EN 60079-7:2007; EN 60079-31:2009
  • O-ring options: NBR or Silicone
  • Temperature range: -40 °C to +100 °C
  • Ingress protection: IP66 to IP68
  • Intended application zones: Zone 1, Zone 2, Zone 21, Zone 22 (Gas groups IIA, IIB, IIC)
