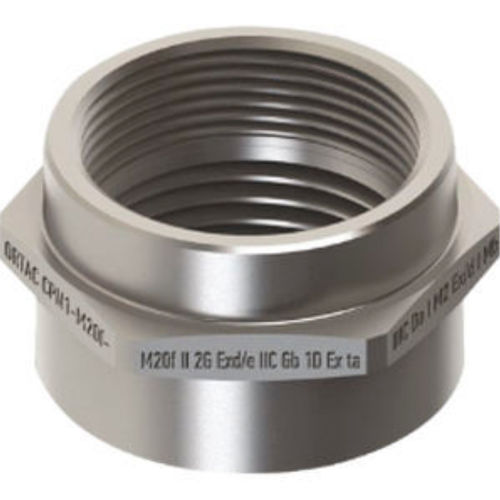

Coupling pipe coupling CPXX/N14f-M12f

NPTstainless steelbrass

Product
Type: CP TYPE COUPLING
Protection code: I M2 Ex db I Mb / I M2 Ex eb I Mb II 2G Ex db IIC Gb II 2G Ex eb II Gb II 1D Ex ta IIIC Da
Certificate: IEP 15 ATEX 0333U
Material: Brass, brass with nickel plated, stainless steel
Standards (seals): NBR / Silicone
Temperature range: -40 °C +100 °C
Protection class: IP66-IP68
Application area: ZONE1, ZONE 2, ZONE 21, ZONE 22; Gas groups IIA, IIB, IIC

Technical Data - NPT SERIES
NPT 1/4" — Code: CPXX/N14f-M12f — IG1: M12 x 1,5 — D: 9,5 mm — H: 33 mm — GL: 15 mm — GL1: 15 mm — SW: 18 mm
NPT 3/8" — Code: CPXX/N38f-M12f — IG1: M12 x 1,5 — D: 9,5 mm — H: 33 mm — GL: 15 mm — GL1: 15 mm — SW: 20 mm
NPT 3/8" — Code: CPXX/N38f-M16f — IG1: M16 x 1,5 — D: 12,5 mm — H: 33 mm — GL: 15 mm — GL1: 15 mm — SW: 20 mm
NPT 1/2" — Code: CPXX/N12f-M16f — IG1: M16 x 1,5 — D: 14 mm — H: 33 mm — GL: 15 mm — GL1: 15 mm — SW: 25 mm
NPT 1/2" — Code: CPXX/N12f-M20f — IG1: M20 x 1,5 — D: 16 mm — H: 33 mm — GL: 15 mm — GL1: 15 mm — SW: 25 mm
NPT 3/4" — Code: CPXX/N34f-M20f — IG1: M20 x 1,4 — D: 17 mm — H: 33 mm — GL: 15 mm — GL1: 15 mm — SW: 32 mm
NPT 3/4" — Code: CPXX/N34f-M25f — IG1: M20 x 1,5 — D: 22 mm — H: 33 mm — GL: 15 mm — GL1: 15 mm — SW: 32 mm
NPT 1" — Code: CPXX/N100f-M25f — IG1: M25 x 1,5 — D: 22,5 mm — H: 33 mm — GL: 15 mm — GL1: 15 mm — SW: 36 mm
NPT 1" — Code: CPXX/N100f-M32f — IG1: M25 x 1,5 — D: 28 mm — H: 33 mm — GL: 15 mm — GL1: 15 mm — SW: 36 mm
NPT 1 1/4" — Code: CPXX/N114f-M32f — IG1: M32 x 1,5 — D: 29 mm — H: 37 mm — GL: 15 mm — GL1: 18 mm — SW: 45 mm
NPT 1 1/4" — Code: CPXX/N114f-M40f — IG1: M32 x 1,5 — D: 35,5 mm — H: 39 mm — GL: 18 mm — GL1: 18 mm — SW: 45 mm
NPT 1 1/2" — Code: CPXX/N112f-M40f — IG1: M40 x 1,5 — D: 38 mm — H: 39 mm — GL: 18 mm — GL1: 18 mm — SW: 55 mm
NPT 1 1/2" — Code: CPXX/N112f-M50f — IG1: M40 x 1,5 — D: 42 mm — H: 39 mm — GL: 18 mm — GL1: 18 mm — SW: 55 mm
NPT 2" — Code: CPXX/N200f-M50f — IG1: M50 x 1,5 — D: 48 mm — H: 39 mm — GL: 18 mm — GL1: 18 mm — SW: 65 mm
NPT 2" — Code: CPXX/N200f-M63f — IG1: M50 x 1,5 — D: 54 mm — H: 39 mm — GL: 18 mm — GL1: 18 mm — SW: 70 mm
NPT 2 1/2" — Code: CPXX/N212f-M63f — IG1: M63 x 1,5 — D: 60 mm — H: 50 mm — GL: 18 mm — GL1: 18 mm — SW: 80 mm
NPT 2 1/2" — Code: CPXX/N212f-M75f — IG1: M63 x 1,5 — D: 64 mm — H: 50 mm — GL: 28 mm — GL1: 18 mm — SW: 80 mm
NPT 3" — Code: CPXX/N300f-M75f — IG1: M75 x 1,5 — D: 72 mm — H: 51 mm — GL: 28 mm — GL1: 18 mm — SW: 95 mm
NPT 3" — Code: CPXX/N300f-M90f — IG1: M75 x 1,5 — D: 79,5 mm — H: 53 mm — GL: 28 mm — GL1: 21 mm — SW: 95 mm
NPT 4" — Code: CPXX/N400f-M90f — IG1: M90 x 1,5 — D: 87 mm — H: 56 mm — GL: 28 mm — GL1: 21 mm — SW: 120 mm
NPT 4" — Code: CPXX/N400f-M110f — IG1: M110 x 1,5 — D: 105 mm — H: 56 mm — GL: 28 mm — GL1: 21 mm — SW: 120 mm

Documents available
Technical Datasheet (product specific) — Technical drawing and part numbering documents referenced on product page.

Characteristics / technical specifications

• Type: CP TYPE COUPLING
• Certificate: IEP 15 ATEX 0333U
• Materials: Brass; Brass with nickel plating; Stainless steel
• Sealing options: NBR or Silicone
• Operating temperature: -40 °C to +100 °C
• Ingress protection: IP66 to IP68
• Protection codes and zones: I M2 Ex db I Mb / I M2 Ex eb I Mb; II 2G Ex db IIC Gb; II 2G Ex eb II Gb; II 1D Ex ta IIIC Da — Suitable for ZONE1, ZONE2, ZONE21, ZONE22 (Gas groups IIA, IIB, IIC)
• Multiple NPT sizes and corresponding product codes and dimensions available (see technical data rows)
