Explosion-proof thread reducer RC series

brassstainless steel

Product

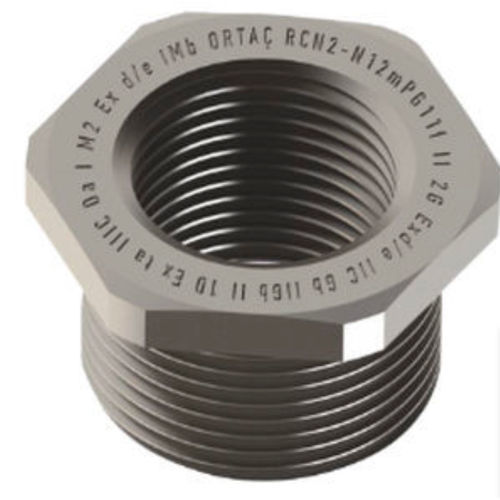

RC TYPE thread reducer for adapting male-to-female metric or NPT threads in cable entries and conduit systems.

Product Details
Type: RC TYPE REDUCER
Protection code: I M2 Ex db I Mb / I M2 Ex eb I Mb II 2G Ex db IIC Gb II 2G Ex eb II Gb II 1D Ex ta IIIC Da
Certificate: IEP 15 ATEX 0333U
Material: Brass, brass with nickel plating, stainless steel
Standards: EN 60079-0:2012; EN 60079-1:2007; EN 60079-7:2007; EN 60079-31:2009
O-ring: NBR / Silicone
Temperature range: -40 °C to +100 °C
Protection class: IP66 - IP68
Application area: ZONE 1, ZONE 2, ZONE 21, ZONE 22 — Gas groups IIA, IIB, IIC

Technical Data
Product Size | Product Code | IG (F) | GL min. mm | H mm | SW mm
M16 x 1,5 | RCXX/M16m-M12f | M12 x 1,5 | 15 | 19 | 22
M20 x 1,5 | RCXX/M20m-M12f | M12 x 1,5 | 15 | 19 | 25
M20 x 1,5 | RCXX/M20m-M16f | M16 x 1,5 | 15 | 19 | 25
M25 x 1,5 | RCXX/M25m-M16f | M16 x 1,5 | 15 | 19 | 30
M25 x 1,5 | RCXX/M25m-M20f | M20 x 1,5 | 15 | 19 | 30
M32 x 1,5 | RCXX/M32m-M20f | M20 x 1,5 | 15 | 19 | 36
M32 x 1,5 | RCXX/M32m-M25f | M25 x 1,5 | 15 | 19 | 36
M40 x 1,5 | RCXX/M40m-M25f | M25 x 1,5 | 18 | 22 | 45
M40 x 1,5 | RCXX/M40m-M32f | M32 x 1,5 | 18 | 22 | 45
M50 x 1,5 | RCXX/M50m-M32f | M32 x 1,5 | 18 | 23 | 55
M50 x 1,5 | RCXX/M50m-M40f | M40 x 1,5 | 18 | 23 | 55
M63 x 1,5 | RCXX/M63m-M40f | M40 x 1,5 | 18 | 23 | 70
M63 x 1,5 | RCXX/M63m-M50f | M50 x 1,5 | 18 | 23 | 70
M75 x 1,5 | RCXX/M75m-M50f | M50 x 1,5 | 18 | 24 | 85
M75 x 1,5 | RCXX/M75m-M63f | M63 x 1,5 | 18 | 24 | 85
M90 x 1,5 | RCXX/M90m-M63f | M63 x 1,5 | 21 | 29 | 100
M90 x 1,5 | RCXX/M90m-M75f | M75 x 1,5 | 21 | 29 | 100
M110 x 1,5 | RCXX/M110m-M75f | M75 x 1,5 | 21 | 31 | 120
M110 x 1,5 | RCXX/M110m-M90f | M90 x 1,5 | 21 | 31 | 120

NPT (Product Size) | Product Code | IG (F) | GL min. mm | H mm | SW mm
NPT 3/8" | RCXX/N38m-N14f | NPT 1/4" | 15 | 19 | 22
NPT 1/2" | RCXX/N12m-N14f | NPT 1/4" | 15 | 19 | 25
NPT 1/2" | RCXX/N12m-N38f | NPT 3/8" | 15 | 19 | 25
NPT 3/4" | RCXX/N34m-N38f | NPT 3/8" | 15 | 19 | 30
NPT 3/4" | RCXX/N34m-N12f | NPT 1/2" | 15 | 19 | 30
NPT 1" | RCXX/N100m-N12f | NPT 1/2" | 15 | 19 | 36
NPT 1" | RCXX/N100m-N34f | NPT 3/4" | 15 | 19 | 36
NPT 1 1/4" | RCXX/N114m-N12f | NPT 1/2" | 18 | 22 | 45
NPT 1 1/4" | RCXX/N114m-N34f | NPT 3/4" | 18 | 22 | 45
NPT 1 1/4" | RCXX/N114m-N100f | NPT 1" | 18 | 22 | 45
NPT 1 1/2" | RCXX/N112m-N12f | NPT 1/2" | 18 | 23 | 55
NPT 1 1/2" | RCXX/N112m-N34f | NPT 3/4" | 18 | 23 | 55
NPT 1 1/2" | RCXX/N112m-N100f | NPT 1" | 18 | 23 | 55
NPT 1 1/2" | RCXX/N112m-N114f | NPT 1 1/4" | 18 | 23 | 55
NPT 2" | RCXX/N200m-N114f | NPT 1 1/4" | 18 | 23 | 65
NPT 2" | RCXX/N200m-N112f | NPT 1 1/2" | 18 | 23 | 65
NPT 2 1/2" | RCXX/N212m-N112f | NPT 1 1/2" | 28 | 34 | 75
NPT 2 1/2" | RCXX/N212m-N200f | NPT 2" | 28 | 34 | 75
NPT 3" | RCXX/N300m-N200f | NPT 2" | 28 | 36 | 95
NPT 3" | RCXX/N300m-N212f | NPT 2 1/2" | 28 | 36 | 95
NPT 4" | RCXX/N400m-N212f | NPT 2 1/2" | 28 | 38 | 120
NPT 4" | RCXX/N400m-N300f | NPT 3" | 28 | 38 | 120

Characteristics / Technical specifications

• Type: RC TYPE REDUCER
• Certificate: IEP 15 ATEX 0333U
• Protection code: I M2 Ex db I Mb / I M2 Ex eb I Mb II 2G Ex db IIC Gb II 2G Ex eb II Gb II 1D Ex ta IIIC Da
• Materials available: Brass; Brass with nickel plating; Stainless steel
• Standards: EN 60079-0:2012; EN 60079-1:2007; EN 60079-7:2007; EN 60079-31:2009
• O-ring materials: NBR; Silicone
• Temperature range: -40 °C to +100 °C
• Protection class: IP66 - IP68
• Application areas: ZONE 1, ZONE 2, ZONE 21, ZONE 22 — Gas groups IIA, IIB, IIC
• Available in Metric and NPT sizes with corresponding product codes and dimensions (IG / GL / H / SW) as listed above
