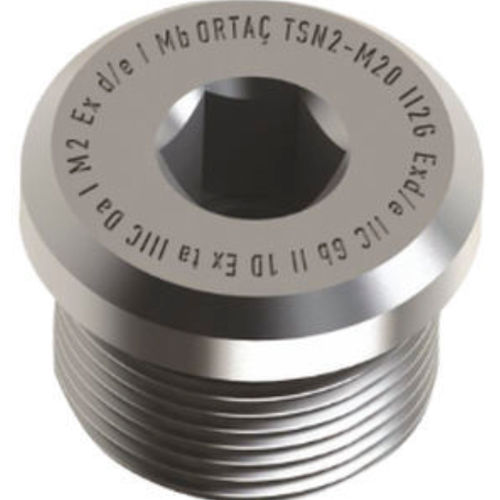

Cylindrical plug TS series

threadedbrassnickel-plated brass

Product
Ex-proof stopper plug TS Series

Product details

• Type: TO TYPE STOPPER PLUG
• Protection code: II 2G Exd IIC Gb / Ex e IIC Gb II 1D Ex ta IIIC Da I M2 Ex d I Mb / Ex e I Mb
• Certificate: IEP 15 ATEX 0333U
• Material: Brass; brass with nickel plated; stainless steel
• Standards: EN IEC 60079-0:2018; EN 60079-1:2014; EN 60079-7:2015; EN 60079-31:2014
• O-ring: NBR / Silicone
• Temperature range: -40 °C to +100 °C
• Protection class: IP66 - IP68
• Application area: ZONE 1, ZONE 2, ZONE 21, ZONE 22 — Gas groups IIA, IIB, IIC

Technical data (table)
Product Size | Product Code | GL min. mm | H mm | D mm | SW mm
M12 x 1,5 | TSXX-M12 | 15 | 21 | 17 | 6
M16 x 1,5 | TSXX-M16 | 15 | 21 | 22 | 8
M20 x 1,5 | TSXX-M20 | 15 | 21 | 27 | 10
M25 x 1,5 | TSXX-M25 | 15 | 21 | 30 | 10
M32 x 1,5 | TSXX-M32 | 15 | 21 | 36 | 10
M40 x 1,5 | TSXX-M40 | 15 | 21 | 46 | 10
M50 x 1,5 | TSXX-M50 | 15 | 21 | 55 | 10
M63 x 1,5 | TSXX-M63 | 15 | 21 | 68 | 10
M75 x 1,5 | TSXX-M75 | 15 | 21 | 80 | 14
M90 x 2 | TSXX-M90 | 20 | 26 | 95 | 14
M100 x 2 | TSXX-M100 | 20 | 26 | 108 | 14

NPT
NPT 1/4" | TSXX-N14 | 15 | 21 | 19 | 6
NPT 3/8" | TSXX-N38 | 15 | 21 | 23 | 8
NPT 1/2" | TSXX-N12 | 15 | 21 | 27 | 10
NPT 3/4" | TSXX-N34 | 15 | 21 | 32 | 10
NPT 1" | TSXX-N100 | 15 | 21 | 39 | 10
NPT 1 1/4" | TSXX-N114 | 18 | 24 | 48 | 10
NPT 1 1/2" | TSXX-N112 | 18 | 24 | 55 | 10
NPT 2" | TSXX-N200 | 18 | 24 | 65 | 10
NPT 2 1/2" | TSXX-N212 | 28 | 34 | 78 | 14
NPT 3" | TSXX-N300 | 28 | 34 | 95 | 14
NPT 4" | TSXX-N400 | 28 | 34 | 120 | 14

GAS
G 1/4" | TSXX-G14 | 15 | 21 | 19 | 6
G 3/8" | TSXX-G38 | 15 | 21 | 22 | 8
G 1/2" | TSXX-G12 | 15 | 21 | 26 | 10
G 3/4" | TSXX-G34 | 15 | 21 | 32 | 10
G 1" | TSXX-G100 | 15 | 21 | 39 | 10
G 1 1/4" | TSXX-G114 | 15 | 21 | 47 | 10
G 1 1/2" | TSXX-G112 | 15 | 21 | 53 | 10
G 2" | TSXX-G200 | 15 | 21 | 65 | 10
G 2 1/2" | TSXX-G212 | 20 | 26 | 80 | 14
G 3" | TSXX-G300 | 20 | 26 | 93 | 14
G 4" | TSXX-G400 | 20 | 26 | 118 | 14

PG
PG7 | TSXX-P7 | 15 | 21 | 18 | 6
PG9 | TSXX-P9 | 15 | 21 | 21 | 8
PG11 | TSXX-P11 | 15 | 21 | 24 | 10
PG 13,5 | TSXX-P13 | 15 | 21 | 26 | 10
PG16 | TSXX-P16 | 15 | 21 | 28 | 10
PG21 | TSXX-P21 | 15 | 21 | 34 | 10
PG29 | TSXX-P29 | 15 | 21 | 42 | 10
PG36 | TSXX-P36 | 15 | 21 | 52 | 10
PG42 | TSXX-P42 | 15 | 21 | 59 | 10
PG48 | TSXX-P48 | 15 | 21 | 65 | 10

Characteristics / technical specifications

• Type: TO TYPE STOPPER PLUG
• Protection code: II 2G Exd IIC Gb / Ex e IIC Gb II 1D Ex ta IIIC Da I M2 Ex d I Mb / Ex e I Mb
• Certificate: IEP 15 ATEX 0333U
• Materials available: Brass; brass with nickel plated; stainless steel
• Standards: EN IEC 60079-0:2018; EN 60079-1:2014; EN 60079-7:2015; EN 60079-31:2014
• O-ring options: NBR, Silicone
• Operating temperature range: -40 °C to +100 °C
• Ingress protection: IP66 - IP68
• Application zones: Zone 1, Zone 2, Zone 21, Zone 22 — Gas groups IIA, IIB, IIC
