Brass cable gland CP series

nickel-plated brassstainless steelIP66

Product name

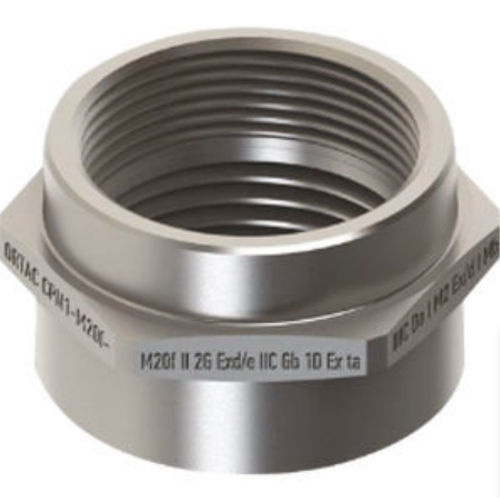

CP TYPE coupling — Metric

General information
Type : CP TYPE COUPLING
Protection code : I M2 Ex db I Mb / I M2 Ex eb I Mb II 2G Ex db IIC Gb II 2G Ex eb II Gb II 1D Ex ta IIIC Da
Certificate : IEP 15 ATEX 0333U
Material : Brass; Brass with nickel plated; Stainless steel
Standards (gasket) : NBR / Silicone
Temperature range : -40 °C to +100 °C
Protection class : IP66 - IP68
Application area : ZONE1, ZONE 2, ZONE 21, ZONE 22; Gas groups IIA, IIB, IIC

Technical data (table)
IG | Product Code | IG1 mm | D mm | H mm | GL mm | GL1 mm | SW mm
M12 x 1,5 | CPXX/M12f-M12f | M12 x 1,5 | 9,5 | 33 | 15 | 15 | 18
M16 x 1,5 | CPXX/M16f-M12f | M12 x 1,5 | 9,5 | 33 | 15 | 15 | 20
M16 x 1,5 | CPXX/M16f-M16f | M16 x 1,5 | 13 | 33 | 15 | 15 | 20
M20 x 1,5 | CPXX/M20f-M16f | M16 x 1,5 | 13,5 | 33 | 15 | 15 | 25
M20 x 1,5 | CPXX/M20f-M20f | M20 x 1,5 | 16 | 33 | 15 | 15 | 25
M25 x 1,5 | CPXX/M25f-M20f | M20 x 1,5 | 17 | 33 | 15 | 15 | 32
M25 x 1,5 | CPXX/M25f-M25f | M25 x 1,5 | 22 | 33 | 15 | 15 | 32
M32 x 1,5 | CPXX/M32f-M25f | M25 x 1,5 | 22 | 34 | 15 | 15 | 36
M32 x 1,5 | CPXX/M32f-M32f | M32 x 1,5 | 29 | 34 | 15 | 15 | 36
M40 x 1,5 | CPXX/M40f-M32f | M32 x 1,5 | 29 | 37 | 18 | 15 | 45
M40 x 1,5 | CPXX/M40f-M40f | M40 x 1,5 | 37 | 40 | 18 | 18 | 45
M50 x 1,5 | CPXX/M50f-M40f | M40 x 1,5 | 37,5 | 40 | 18 | 18 | 55
M50 x 1,5 | CPXX/M50f-M50f | M50 x 1,5 | 47 | 40 | 18 | 18 | 55
M63 x 1,5 | CPXX/M63f-M50f | M50 x 1,5 | 47 | 41 | 18 | 18 | 70
M63 x 1,5 | CPXX/M63f-M63f | M63 x 1,5 | 60 | 41 | 18 | 18 | 70
M75 x 1,5 | CPXX/M75f-M63f | M63 x 1,5 | 60 | 41 | 18 | 18 | 80
M75 x 1,5 | CPXX/M75f-M75f | M75 x 1,5 | 72 | 41 | 18 | 18 | 80
M90 x 1,5 | CPXX/M90f-M75f | M75 x 1,5 | 72 | 45 | 21 | 18 | 95
M90 x 1,5 | CPXX/M90f-M90f | M90 x 1,5 | 87 | 45 | 21 | 21 | 95
M110 x 1,5 | CPXX/M110f-M110f | M110 x 1,5 | 107 | 45 | 21 | 21 | 120

Notes
Materials available: brass, brass with nickel plating, stainless steel. Gaskets: NBR or silicone. Certified: IEP 15 ATEX 0333U. Protection class IP66 to IP68. Suitable for hazardous areas ZONE 1 / ZONE 2 / ZONE 21 / ZONE 22 and gas groups IIA, IIB, IIC.

Technical specifications

• Type : CP TYPE COUPLING
• Certificate : IEP 15 ATEX 0333U
• Material : Brass; Brass with nickel plating; Stainless steel
• Gasket materials (standards) : NBR / Silicone
• Operating temperature range : -40 °C to +100 °C
• Protection class : IP66 - IP68
• Application areas : Zone 1, Zone 2, Zone 21, Zone 22; Gas groups IIA, IIB, IIC
• Thread sizes : Metric threads M12 up to M110 (see technical table for dimensions and codes)
