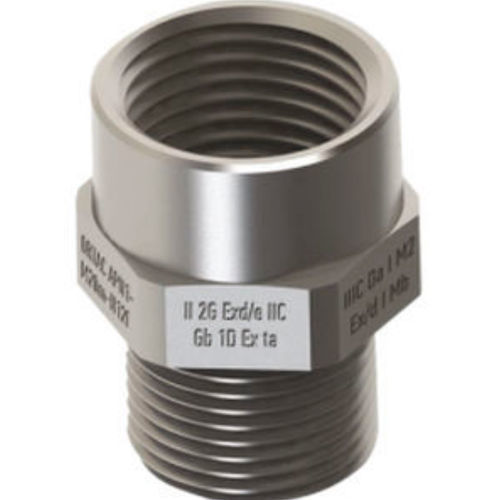

Threaded adapter AP Type

malefemalefor pipes

Product name
AP Type Adapter

Product details
Type: AP TYPE ADAPTER
Protection code: I M2 Ex db I Mb / I M2 Ex eb I Mb II 2G Ex db IIC Gb II 2G Ex eb II Gb II 1D Ex ta IIIC Da
Certificate: IEP 15 ATEX 0333U
Material: Brass, brass with nickel plated, stainless steel
Standards: EN 60079-0 2012 /60079-1 2007/60079-7 2007 / 60079-31 2009
O-ring: NBR / Silicone
Temperature range: -40 °C +100 °C
Protection class: IP66-IP68
Application area: ZONE 1, ZONE 2, ZONE 21, ZONE 22; Gas groups IIA, IIB, IIC

Technical data (selection of product sizes / codes)
Columns: Product Size | Product Code | IG (F) | GL min. mm | H mm | SW mm
M12 x 1,5 | APXX/M12m-N14f | NPT 1/4" | 15 | 33,5 | 18
M12 x 1,5 | APXX/M12m-N38f | NPT 3/8" | 15 | 33,5 | 20
M16 x 1,5 | APXX/M16m-N38f | NPT 3/8" | 15 | 33,5 | 20
M16 x 1,5 | APXX/M16m-N12f | NPT 1/2" | 15 | 34 | 25
M20 x 1,5 | APXX/M20m-N12f | NPT 1/2" | 15 | 34 | 25
M20 x 1,5 | APXX/M20m-N34f | NPT 3/4" | 15 | 34 | 30
M25 x 1,5 | APXX/M25m-N34f | NPT 3/4" | 15 | 34 | 30
M25 x 1,5 | APXX/M25m-N100f | NPT 1" | 15 | 34 | 36
M32 x 1,5 | APXX/M32m-N100f | NPT 1" | 15 | 34 | 36
M32 x 1,5 | APXX/M32m-N114f | NPT 1 1/4" | 15 | 37 | 45
M40 x 1,5 | APXX/M40m-N114f | NPT 1 1/4" | 18 | 40 | 45
M40 x 1,5 | APXX/M40m-N112f | NPT 1 1/2" | 18 | 40 | 55
M50 x 1,5 | APXX/M50m-N112f | NPT 1 1/2" | 18 | 40 | 55
M50 x 1,5 | APXX/M50m-N200f | NPT 2" | 18 | 40,5 | 65
M63 x 1,5 | APXX/M63m-N200f | NPT 2" | 18 | 40,5 | 70
M63 x 1,5 | APXX/M63m-N212f | NPT 2 1/2" | 18 | 50,5 | 80
M75 x 1,5 | APXX/M75m-N212f | NPT 2 1/2" | 18 | 50,5 | 80
M75 x 1,5 | APXX/M75m-N300f | NPT 3" | 18 | 50,5 | 95
M90 x 1,5 | APXX/M90m-N300f | NPT 3" | 21 | 54 | 95
M90 x 1,5 | APXX/M90m-N400f | NPT 4" | 21 | 54 | 120
M110 x 1,5 | APXX/M110m-N400f | NPT 4" | 21 | 54 | 120

Reverse/alternative codes (NPT → Metric)
NPT 1/4" | APXX/N14m-M12f | M12 x 1,5 | GL min. 15 | H 33,5 | SW 18
NPT 1/4" | APXX/N14m-M16f | M16 x 1,5 | GL min. 15 | H 33,5 | SW 22
NPT 3/8" | APXX/N38m-M16f | M16 x 1,5 | GL min. 15 | H 33,5 | SW 22
NPT 3/8" | APXX/N38m-M20f | M20 x 1,5 | GL min. 15 | H 33,5 | SW 25
NPT 1/2" | APXX/N12m-M20f | M20 x 1,5 | GL min. 15 | H 34 | SW 25
NPT 1/2" | APXX/N12m-M25f | M25 x 1,5 | GL min. 15 | H 34 | SW 30
NPT 3/4" | APXX/N34m-M25f | M25 x 1,5 | GL min. 15 | H 34 | SW 30
NPT 3/4" | APXX/N34m-M32f | M32 x 1,5 | GL min. 15 | H 34 | SW 36
NPT 1" | APXX/N100m-M32f | M32 x 1,5 | GL min. 15 | H 34 | SW 36
NPT 1" | APXX/N100m-M40f | M40 x 1,5 | GL min. 15 | H 34 | SW 45
NPT 1 1/4" | APXX/N114m-M40f | M40 x 1,5 | GL min. 18 | H 40 | SW 45
NPT 1 1/4" | APXX/N114m-M50f | M50 x 1,5 | GL min. 18 | H 40 | SW 55
NPT 1 1/2" | APXX/N112m-M50f | M50 x 1,5 | GL min. 18 | H 40 | SW 55
NPT 1 1/2" | APXX/N112m-M63f | M63 x 1,5 | GL min. 18 | H 40 | SW 70
NPT 2" | APXX/N200m-M63f | M63 x 1,5 | GL min. 18 | H 40,5 | SW 70
NPT 2" | APXX/N200m-M75f | M75 x 1,5 | GL min. 18 | H 40,5 | SW 80
NPT 2 1/2" | APXX/N212m-M75f | M75 x 1,5 | GL min. 28 | H 50,5 | SW 80
NPT 2 1/2" | APXX/N212m-M90f | M90 x 1,5 | GL min. 28 | H 50,5 | SW 95
NPT 3" | APXX/N300m-M90f | M90 x 1,5 | GL min. 28 | H 54 | SW 95
NPT 3" | APXX/N300m-M110f | M110 x 1,5 | GL min. 28 | H 54 | SW 115
NPT 4" | APXX/N400m-M110f | M110 x 1,5 | GL min. 28 | H 54 | SW 120

Features / technical specifications

• Type: AP TYPE ADAPTER
• Protection code: I M2 Ex db I Mb / I M2 Ex eb I Mb II 2G Ex db IIC Gb II 2G Ex eb II Gb II 1D Ex ta IIIC Da
• Certificate: IEP 15 ATEX 0333U
• Materials available: Brass; Brass with nickel plated; Stainless steel
• Standards: EN 60079-0:2012; EN 60079-1:2007; EN 60079-7:2007; EN 60079-31:2009
• O-ring options: NBR or Silicone
• Temperature range: -40 °C to +100 °C
• Protection class: IP66 to IP68
• Application zones: Zone 1, Zone 2, Zone 21, Zone 22 — Gas groups IIA, IIB, IIC
• Available sizes/codes: multiple metric and NPT combinations (see Technical data block)
