Water pipe PALADRAINsteelconstructionfor agricultural applications
Add to favorites
Compare this product
Characteristics
- Use
- for water
- Material
- steel
- Applications
- construction, for agricultural applications, transfer, mining and quarrying
- Other characteristics
- perforated
- Inner diameter
Max.: 2,000 mm
(78.74 in)Min.: 1,000 mm
(39.37 in)
Description
Application
Use of PALADEX® Pipes
Description
Features / Technical Specifications
- Drainage pipes remove excess water from specific soil layers, adjusting boundary conditions.
- Useful in situations requiring soil consolidation, groundwater regime modification, or water removal from landslide areas.
Use of PALADEX® Pipes
- PALADEX® pipes, properly slotted, can be used in drainage trenches or systems for water removal or collection.
Description

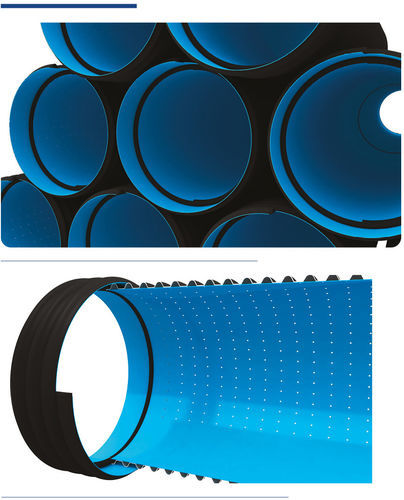

- The slotted drainage pipe features perforations along the groove between the steel spirals.
- These holes allow water to enter the pipe without carrying soil residues.
- The soil is consolidated and excess water is directed to a collection point (sub-horizontal pipes) or into a well (vertical pipes).
- Sub-horizontal drainage pipes can be used for road, agricultural, railway, airport, construction, and public green space drainage works.
- Vertical drainage pipes are intended for creating wells for domestic, agricultural, or public use.
Features / Technical Specifications
- Slotted steel drainage pipes
- Perforations along the groove between spirals
- Use in drainage trenches, systems, water collection and removal
- Applications: soil consolidation, road, agricultural, railway, airport, construction, public green space drainage, domestic/agricultural/public wells
