Water tube Palaroadfor gasgalvanised steelpolyethylene (PE)
Add to favorites
Compare this product
Characteristics
- Use
- for water, for gas
- Material
- galvanised steel, polyethylene (PE)
- Applications
- sanitary
- Other characteristics
- spiral
- Inner diameter
1,500 mm
(59.055 in)
Description
Specification Definition

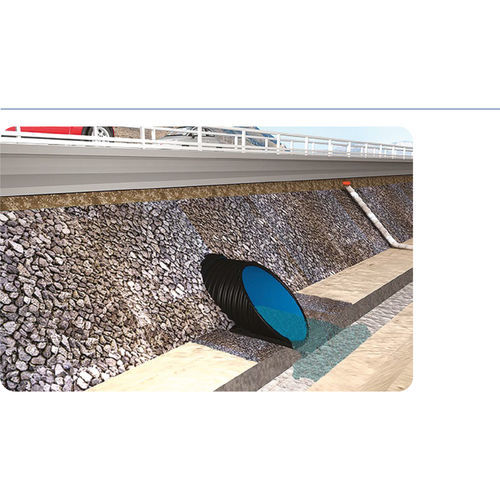

Spiral composite pipes made of polyethylene and galvanized steel, produced according to UNI 11434 standard, suitable for creating tunnels or culverts for highway, railway underpasses, and embankments and utilities (water supply, storm and sanitary sewers, technical gases, etc.). Structured wall profile of spiral type, obtained by helical winding, smooth internally with external ribs reinforced by an integral and continuous galvanized steel sheet, omega-shaped, class DX51 D + ZF/Z compliant with UNI EN 10346, incorporated into the pipe wall. Continuous coupling of the galvanized steel core to the polyethylene walls obtained through chemical fastening ensuring polyethylene-steel solidarity and their perfect and uninterrupted adhesion. Dimensions allow inspection and maintenance, both ordinary and extraordinary, without tampering with the road surface.
Specifications
These are self-supporting pipes, easy and quick to install, meeting all logistical and structural needs required in designs. Wide range of diameters up to 3000 mm allowing maximum exploitation of the heights of the structures that house them.
Features / Technical Specifications
Spiral composite pipes made of polyethylene and galvanized steel, produced according to UNI 11434 standard, suitable for creating tunnels or culverts for highway, railway underpasses, and embankments and utilities (water supply, storm and sanitary sewers, technical gases, etc.). Structured wall profile of spiral type, obtained by helical winding, smooth internally with external ribs reinforced by an integral and continuous galvanized steel sheet, omega-shaped, class DX51 D + ZF/Z compliant with UNI EN 10346, incorporated into the pipe wall. Continuous coupling of the galvanized steel core to the polyethylene walls obtained through chemical fastening ensuring polyethylene-steel solidarity and their perfect and uninterrupted adhesion. Dimensions allow inspection and maintenance, both ordinary and extraordinary, without tampering with the road surface.
Specifications
These are self-supporting pipes, easy and quick to install, meeting all logistical and structural needs required in designs. Wide range of diameters up to 3000 mm allowing maximum exploitation of the heights of the structures that house them.
Features / Technical Specifications
- Spiral composite pipes made of polyethylene and galvanized steel
- Produced according to UNI 11434 standard
- Structured spiral wall profile, smooth internally
- External ribs reinforced by galvanized steel sheet class DX51 D + ZF/Z (UNI EN 10346)
- Continuous polyethylene-steel coupling through chemical fastening
- Inspectable and maintainable without tampering with the road surface
- Self-supporting, easy and quick to install
- Diameter range up to 3000 mm
