Gas tube Palatech

galvanised steelpolyethylene (PE)sanitary

Specification Definition

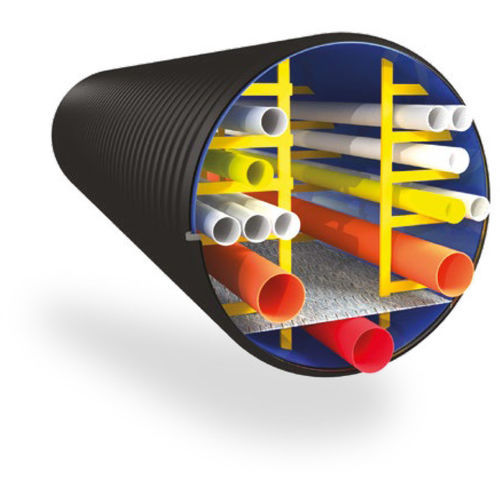

Spiral composite pipes made of polyethylene and galvanized steel, produced according to UNI 11434 standard, suitable for creating tunnels or ducts for housing technological networks [electricity, telephony, data network, optical fiber, etc.] and/or services and sub-services [water supply, storm and sanitary sewers, technical gases, etc.]. The structured wall profile of the spiral type, obtained by helical winding, smooth internally with external ribs reinforced by an integral and continuous galvanized steel sheet, shaped like an omega, class DX51 D + ZF/Z compliant with UNI EN 10346, incorporated into the pipe wall. Continuous coupling of the steel core to the polyethylene walls achieved through chemical fastening ensuring polyethylene-steel solidarity and their perfect and uninterrupted adhesion. The dimensions allow inspection and maintenance, both ordinary and extraordinary, without tampering with the road surface.

Advantages

• Resistance to chemical agents and abrasion
• No infiltration into the pipeline body
• Bars up to 13.40 m
• Diameter up to 3000 mm
• Ring stiffness up to SN20
• Static and dynamic resistance
• Long-lasting durability
• Ease of handling
• Ease of installation
• Reduction of risks on site
• Adaptability
• Reduction of maintenance interventions

Features / Technical Specifications

• Material: polyethylene and galvanized steel
• Production standard: UNI 11434
• Steel class: DX51 D + ZF/Z compliant with UNI EN 10346
• Maximum diameter: 3000 mm
• Bar length: up to 13.40 m
• Ring stiffness: up to SN20
• Profile: spiral structured wall, smooth internally, reinforced external ribs
• Coupling: chemical fastening polyethylene-steel
• Inspectability and maintenance without tampering with the road surface
