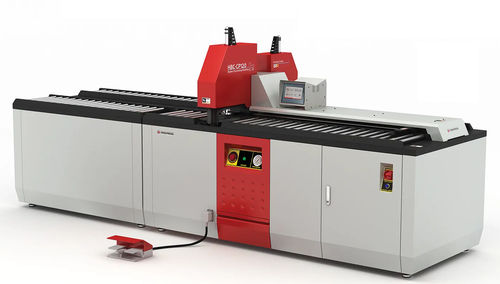

Punching busbar fabrication machine HBC-CP120

cuttingfixedelectro-hydraulic

Overview
The HBC-CP120 is a dedicated busbar cutting and punching machine for copper and aluminum busbars up to 120 × 12 mm. It combines shearing and hole punching in a single unit with two independent hydraulic power packs, allowing both operations to run simultaneously. Two configurations are available: ES (automatic with programmable stopper) and EH (manual stopper).

Main advantages

• Simultaneous cutting and punching using separate hydraulic power packs to increase throughput.
• Accurate, burr-free shearing and precise hole punching for copper and aluminum busbars up to 120 × 12 mm.
• ES version offers a programmable stopper with up to 20 positions (absolute or incremental) for repeatability; EH uses a manual/handy stopper.
• Industry 4.0 ready for monitoring and integration into automated production lines.
• Laser center-finder, rollers for easier busbar movement and a foot pedal for automatic cycle control.

Functional elements (hotspots and stations)

• Rollers: located at both sides of the puncher to ease handling and feeding of busbars.
• Foot pedal: controls hydraulic arm for automatic operation.
• Puncher station: punching station capable of producing circular, oval or rectangular holes within machine capacity.
• Cutter station: shear/cut station matched to the machine capacity for clean cuts.

Technical information — descriptive
Machine is built around two separate double-acting hydraulic power packs (one per function) so cutting and punching can occur simultaneously. A laser center-finder improves hole alignment and speeds setup. Circular dies available from M6 to M18; oval and rectangular dies are optional. Hydraulic system operates at 200 bar and uses approximately 60 L of hydraulic oil (ISO VG 68). The design supports continuous production and offers automatic positioning (ES) or a manual stopper (EH).

Notes from page entries (multiple on-page values)
The source page shows two different power ratings: a small specification card lists Total power: 3.5 kW, while a Q&A entry lists 1 × 11 kW. These differing values appear on the original page; consult the official technical documentation or product sheet to confirm the exact power configuration.

Technical specifications

• Model: HBC-CP120 (ES / EH)
• Function: Cutting + Punching (simultaneous)
• Max capacity (busbar): 120 × 12 mm
• Materials: Copper and Aluminum
• Max die / hole diameter (card): Ø20 mm
• Die range: Circular dies M6 – M18; oval and rectangular die options available
• Positioning (stopper): Automatic (ES) programmable stopper up to 20 positions — absolute or incremental; Manual / handy stopper (EH)
• Power (on small spec card): 3.5 kW
• Power (Q&A entry on page): 1 × 11 kW (listed separately on page)
• Rated voltage: 380 V AC
• Motor configuration: Dual motor / dual power packs
• Frequency: 50 Hz
• Operating (hydraulic) pressure: 200 bar
• Hydraulic oil capacity/type: 60 L (ISO VG 68)
• Operators required: 2
• Machine weight: 980 kg
• Mounting type: Floor base
• Dimensions (L×W×H): 245 × 110 × 167 cm
• Industry 4.0: Ready (monitoring/control capability)
• Key accessories / aids: Laser center finder, rollers for busbar movement, foot pedal for automatic operation
