Punching busbar fabrication machine HBC-B120

cuttingbendingmobile

Product overview

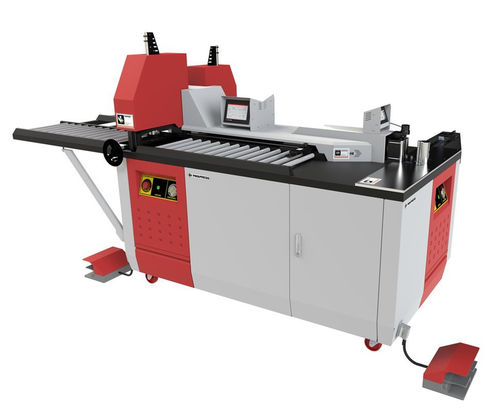

The HBC-B120 is a compact, single-power-pack busbar processing machine that performs cutting, punching and bending sequentially on copper and aluminum busbars up to 120 × 12 mm. Its single hydraulic power pack drives each station in sequence, providing a space- and cost-efficient solution for moderate-volume production, small workshops or as an entry-level busbar line.

Key functions

• Cutting — precision busbar cutter with centered guidance
• Punching — punch station with laser centering and compatible with circular M6–M18 dies
• Bending — bending station with dual measurement systems for angle and stroke control

Machine stations & controls

• Bender station — roller jaw to reduce marking, linear encoder and rotary encoder options for repeatable bends
• Puncher station — laser centring pointer and interchangeable dies (circular, oval, rectangular)
• Cutter station — guided cutting for clean end faces
• Digital controllers (ES variant) — programmable stopper and process recipes for cutter, puncher and bender
• Hydraulic power pack — single unit driving stations in sequence; mobile wheel base for repositioning

Variants

• EH — manual positioning and simplified controls for varied one-off jobs
• ES — programmable stopper and digital controllers for repeat lengths, higher repeatability and partial automation

Operational benefits

• Capacity up to 120 × 12 mm on Cu/Al with lower purchase and running cost vs multi-power-pack systems
• Reduced electrical power draw and compact footprint suitable for small workshops
• Mobile base eases installation and shop rearrangement
• Industry 4.0 ready — remote feedback and supervision capability (option)
• Designed for operation by 1–2 operators

Technical specifications

• Model: HBC-B120 (EH / ES)
• Functions: Cutting + Punching + Bending (piece-by-piece)
• Maximum capacity: 120 × 12 mm (Cu / Al)
• Material: Copper & Aluminum
• Max die / hole diameter: Ø20 mm (standard dies M6–M18)
• Max bending radius (standard mold): 12 mm
• Positioning (stopper): Manual (EH) / Automatic programmable (ES)
• Rated voltage: 380 V AC
• Total power: 2 kW
• Frequency: 50 Hz
• Operating pressure: 200 bar
• Hydraulic oil capacity: 30 L
• Machine weight: ~840 kg
• Operators required: 1–2
• Mounting type: Mobile base with wheels
• Dimensions (L × W × H): 200 × 110 × 174 cm
• Industry 4.0 ready: Yes (communication option)
