Cutting busbar machine HBC-CP200

punchingfixed

Overview

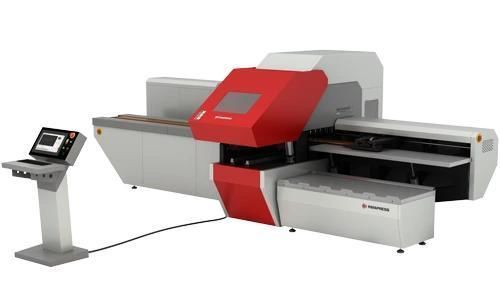

The HBC-CP200 is a dedicated busbar cutting and punching 2‑in‑1 machine designed for copper and aluminum busbars up to 200 × 20 mm. It combines separate punching and cutting stations without a bending station and is configured for continuous high‑throughput production with two operators.

Functions and key features

• Primary functions: Cutting and punching (no bending station)
• Max busbar capacity: 200 × 20 mm (copper & aluminum)
• Max punching die / hole diameter: Ø26 mm
• Two separate hydraulic power packs for independent punch and cut operation to avoid bottlenecks
• Designed to support two operators working simultaneously
• Positioning variants: Programmable length stopper (ES) or manual stopper (EH)
• Laser center finder for locating holes
• Foot pedal for automatic‑mode operation
• Side rollers / roller desks to ease bar movement
• Industry 4.0 ready controls and automation‑capable features

Power & hydraulics
Total installed power: 8.5 kW; hydraulic operating pressure: 200 bar; hydraulic oil capacity: 60 L (Hydraulic Oil H68). Standard electrical supply: 380 V AC three‑phase, 50 Hz.

Machine & operation
Floor‑mounted on a fixed base for a stable permanent footprint suitable for continuous production. Roller desks facilitate handling of wide/heavy bars. Two stopper configurations are available (automatic programmable ES and manual EH). Final machine weight and definitive footprint dimensions must be confirmed from technical documentation at order/production.

Additional notes
Specified for high‑current distribution panels and large switchgear assemblies where wide, thick busbars are required. The separated hydraulic drives for punching and cutting maintain throughput by preventing a single shared hydraulic bottleneck, improving cycle consistency for large‑section busbars.

Technical specifications

• Model: HBC-CP200 (EH / ES variants)
• Functions: Cutting + Punching (no bending station)
• Max capacity: 200 × 20 mm
• Material compatibility: Copper & aluminum
• Max punching die / hole diameter: Ø26 mm
• Positioning stopper: Manual (EH) / Programmable length stopper (ES)
• Rated voltage: 380 V AC (three‑phase)
• Total power: 8.5 kW
• Frequency: 50 Hz
• Operating pressure: 200 bar
• Hydraulic oil: 60 L (Hydraulic Oil H68)
• Hydraulic system: Two separate power packs for punch and cut
• Operators supported: 2
• Mounting type: Fixed base / floor‑mounted
• Dimensions (L×W×H) shown on page: 245 × 148 × 180 cm (please confirm final units and values in technical documentation)
• Machine weight: To be confirmed after manufacturing
• Industry readiness: Industry 4.0 ready features (programmable stopper, automation‑capable controls)
