Overview

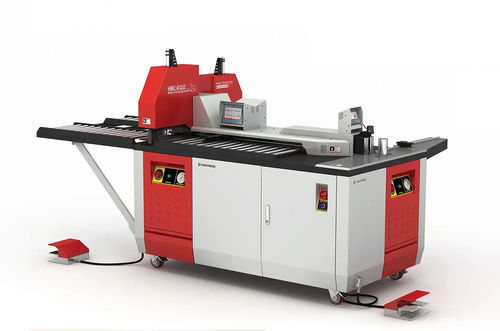

The HBC-A160 is a 3-in-1 busbar processing machine performing cutting, punching and bending of copper and aluminium busbars up to 160 × 15 mm in a single compact unit. It is designed for switchgear assemblers, panel builders and distribution-board manufacturers to enable parallel operation across three independent stations and up to three operators.

Main features

• Three functions in one machine: Cutting + Punching + Bending
• Handles copper and aluminium busbars up to 160 × 15 mm (width × thickness)
• Three independent hydraulic power packs (total 7 kW) operating at 230 bar
• Allows three simultaneous operators to run the three stations in parallel
• Programmable automatic stopper with hole-spacing accuracy to ±0.1 mm
• Punch hole diameter range: Ø4.5–20 mm (max die Ø20 mm)
• Spring-back compensation and digital angle indication on the bender for first-time-right bends
• Siemens PLC control with dual HMI stations; manual and automatic modes with position save/recall
• Industry 4.0 ready — cycle data can integrate with real-time shop reporting and traceability
• Mobile on wheel base for repositioning

Stations & controls

• Bender station with digital controller and digital angle indication
• Puncher station with digital controller for punch operations
• Cutter station with digital controller for cutting operations
• Three hydraulic power packs supplying each station independently

Operational benefits

• Parallel workflow: bending, punching and cutting can run simultaneously to eliminate station bottlenecks
• Reduces rework via precise positioning, spring-back compensation and digital angle readout
• Compact footprint delivers equivalent throughput of a three-station line without additional floor space

Process & capacity
Functions: Cutting + Punching + Bending
Max processed section: 160 × 15 mm (width × thickness)
Materials: Copper and aluminium
Hole diameter capability: Ø4.5–20 mm (max die Ø20 mm)
Positioning accuracy (stopper): ±0.1 mm

Forming capabilities

• One forming head supporting five bend types: Twist bend, Normal bend, Z (step) bend, V bend, Edge bend

Control & connectivity

• Siemens PLC with dual HMI stations for manual and automatic operation
• Positions and cycles can be saved and recalled for repeatable production
• Industry 4.0 readiness for real-time shop reporting and traceability integration

Technical specifications

• Model: HBC-A160
• Max capacity (width × thickness): 160 × 15 mm
• Functions: Cutting, Punching, Bending (3-in-1)
• Punch hole diameter range: Ø4.5–20 mm (max die Ø20 mm)
• Material: Copper & Aluminium
• Positioning (stopper) accuracy: ±0.1 mm
• Total drive power: 7 kW
• Rated voltage: 380 VAC, three-phase
• Frequency: 50 Hz
• Operating pressure: 230 bar
• Hydraulic oil capacity: 70 L
• Number of hydraulic power packs: 3 (independent)
• Operators supported: Up to 3 simultaneous operators
• Machine weight: 900 kg
• Mounting / mobility: Wheel base
• Dimensions (L × W × H): 200 × 110 × 174 cm
