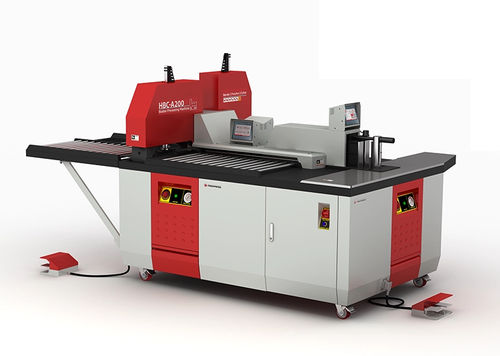

Punching busbar fabrication machine HBC-A200

cuttingbendingmobile

Overview
The HBC-A200 is a compact busbar processing machine that performs cutting, punching and bending of copper and aluminum busbars up to 200 × 20 mm. The unit integrates three independent stations (cutting, punching, bending) driven by a 12.5 kW hydraulic power pack and is mounted on wheels for shop-floor mobility. It is intended for panel builders, switchgear assemblers and distribution-board manufacturers requiring parallel production within a compact footprint.

Key functional features

• Processes: Cutting + Punching + Bending in a single machine
• Max capacity: 200 × 20 mm (copper and aluminum)
• Hydraulics: 12.5 kW power pack, 200 bar working pressure
• Punch capability: clean holes up to Ø26 mm across up to 14 tool stations
• Parallel 3-station layout enabling up to 3 independent operators
• Mobile wheel-mounted design for easy repositioning
• Target users: panel builders, switchgear assemblers, distribution-board manufacturers

Forming and production
The machine supports flat bends, edge and step (Z-type) forming with forming heads sized for bars up to 200 × 20 mm and a maximum bend angle of 70°. It provides precise 90° cuts, reliable die release and is engineered to limit re-drill and re-cut waste during continuous production.

Power & hydraulics

• Rated voltage: 380 V AC (three-phase)
• Total power: 12.5 kW
• Operating pressure: 200 bar
• Frequency: 50 Hz
• Hydraulic oil capacity: 70 L

Machine & operation

• Model designation: HBC-A200 / HBC-A200-ES / HBC-A200-EH
• Max die / hole diameter: Ø26 mm
• Tool stations (punch): up to 14 available
• Max radius bending (standard mobile mold): 14
• Maximum bend angle: 70°
• Positioning stopper: Manual / Automatic
• Operators required: up to 3 (one per station)
• Mounting type: Wheel-mounted (mobile)
• Machine weight: 1700 kg
• Dimensions (L × W × H): 225 × 148 × 187 cm

Applications & benefits

• Replaces separate cutting, punching and bending stations by combining functions in one footprint
• Parallel workflow reduces station idle time and multiplies throughput
• No machine changeovers required when switching between copper and aluminum within the specified capacity
• Designed for continuous production on panel-shop and switchgear assembly lines

Technical specifications

• Model: HBC-A200 / HBC-A200-ES / HBC-A200-EH
• Max capacity (width × thickness): 200 × 20 mm
• Material compatibility: Aluminum & copper
• Functions: Cutting, Punching, Bending (simultaneous)
• Max punch/hole diameter: Ø26 mm
• Punch tool stations: up to 14
• Hydraulic power pack: 12.5 kW, 200 bar
• Rated voltage: 380 V AC (three-phase)
• Frequency: 50 Hz
• Hydraulic oil capacity: 70 L
• Machine weight: 1700 kg
• Operators: up to 3
• Mounting: Wheel-mounted (mobile)
• Dimensions L×W×H: 225 × 148 × 187 cm
• Maximum bend angle: 70°
• Max radius bending (standard mobile mold): 14
