Cutting busbar fabrication machine HBC-CP160 ES/EH

punchingelectro-hydraulic

Overview

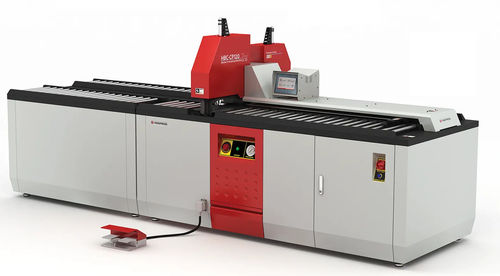

The HBC-CP160 ES/EH is a dedicated busbar punching and cutting machine (no bending station) for copper and aluminum busbar up to 160 × 15 mm. It integrates separate punching and cutting stations driven by independent double‑acting hydraulic power packs to allow simultaneous operation and maximise throughput. The unit is Industry 4.0 ready and intended for heavy‑current distribution and large switchgear production.

Key benefits

• Cutting and punching operate as parallel processes via two independent power packs to reduce cycle time
• Handles wide/heavy busbars up to 160 × 15 mm used in high‑current distribution and large switchgear
• ES variant: automatic programmable length stopper with 20 positions (absolute or incremental)
• EH variant: manual/handy length stopper for direct operator control
• Optional laser centre finder (laser pointer option) and foot pedal for automatic operation
• Side rollers improve material handling and operator efficiency
• Standard circular dies M6–M18; oval and rectangular dies available on request

How it works
The machine uses two separate double‑acting hydraulic power packs running at an operating pressure of 230 bar, enabling punching and cutting to be performed simultaneously. Combined drive power is 4.5 kW. The 230‑bar hydraulic system ensures clean punching and shearing of thicker copper and aluminium bars. This model does not include a bending station; it is dedicated to cutting and punching only.

Hotspot / user-facing features

• Rollers: Rollers on both sides of the puncher simplify feeding and alignment of busbars
• Foot pedal: Controls hydraulic arm travel and engages automatic cycles
• Puncher station: Punches copper and aluminium busbars up to 160 × 15 mm with clean holes
• Cutter station: Shears busbars up to 160 × 15 mm with precise centre guidance

Applications
Designed for manufacturers of heavy‑current distribution systems, large switchgear and electrical panels requiring high‑throughput punching and cutting of copper and aluminium busbars up to 160 × 15 mm.

Technical specifications

• Model: HBC-CP160 ES/EH
• Functions: Cutting + Punching (simultaneous operation possible)
• Maximum busbar capacity: 160 × 15 mm
• Maximum die / hole diameter: Ø20 mm
• Dies: Circular dies M6–M18 standard; oval and rectangular dies on request
• Material: Copper & Aluminum
• Positioning (stopper): ES = Automatic programmable stopper (20 positions, absolute/incremental); EH = Manual stopper
• Rated voltage: 380 V AC (3‑phase)
• Total power: 4.5 kW (combined)
• Operating pressure: 230 bar
• Hydraulic oil capacity: 60 L (ISO VG 68 recommended)
• Frequency: 50 Hz
• Machine weight: 980 kg
• Operators required: 2 (can operate simultaneously)
• Industry 4.0 ready: Yes
• Mounting type: Floor base
• Dimensions (L × W × H): 245 × 110 × 167 cm
