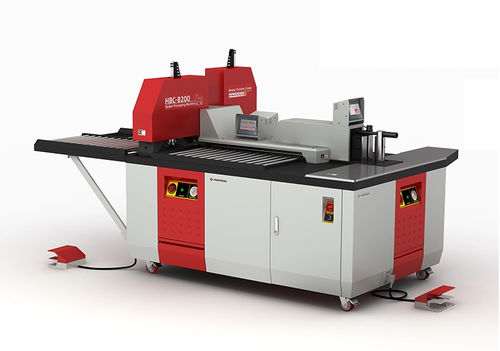

Punching busbar fabrication machine HBC-B200

cuttingbendingmobile

Product overview
The HBC-B200 (HBC-B200-ES / HBC-B200-EH) is a three-function busbar processing machine that performs cutting, punching and bending of copper and aluminum busbars up to 200 × 20 mm. The unit integrates a hydraulic power pack (12.5 kW) rated to 200 bar and is mounted on wheels for relocation on the shop floor. The three operations are available from the same machine unit and are performed sequentially (not simultaneously).

Main functions

• Cutting: precise 90° cuts for busbars up to 200 × 20 mm.
• Punching: holes up to Ø26 mm using up to 14 tool stations.
• Bending: forming bends up to 70° (flat bends, edge and step/Z-type forming) for bars up to 200 × 20 mm.

Design and use
The HBC-B200 is designed for continuous production (50 Hz) and for use by switchgear assemblers, panel builders and distribution-board manufacturers. Its single, mobile station reduces handling between separate machines by providing cutting, punching and bending in sequence, improving workflow and minimizing rework.

Controllers and user features

• Digital controllers for bender, puncher and cutter stations to program operations and ensure repeatability.
• Programmable length stopper for accurate positioning of holes and cuts (programmable for 20 positions).
• Positioning stopper with manual / automatic selection.

Hydraulics and power

• Hydraulic power pack: 12.5 kW total power.
• Operating pressure: up to 200 bar.
• Hydraulic oil capacity: 70 L.
• Frequency: 50 Hz.
• Rated voltage: 380 V AC, three-phase.
• Options/configuration: available with multiple hydraulic power packs in certain variants.

Operation and handling

• Operators required: 1–2 persons depending on workflow.
• Mounting type: wheel-mounted base for mobility.
• Tooling: up to 14 tool stations for punches.
• Max die / hole diameter: Ø26 mm.

Suitable materials
Copper and aluminum busbars up to 200 × 20 mm (width × thickness).

Applications
Intended for switchgear assemblers, panel builders and distribution-board manufacturers who require integrated cutting, punching and bending in a compact, mobile machine.

Technical specifications

• Model designation: HBC-B200 (also referenced as HBC-B200-ES / HBC-B200-EH).
• Maximum processing capacity: 200 × 20 mm (W × T).
• Functions: Cutting + Punching + Bending (performed sequentially, not simultaneously).
• Total power: 12.5 kW.
• Rated voltage: 380 V AC, three-phase.
• Frequency: 50 Hz.
• Operating (hydraulic) pressure: 200 bar.
• Hydraulic oil volume: 70 L.
• Max die / hole diameter: Ø26 mm.
• Tool stations: 14 available stations for punching.
• Maximum bend angle: 70°.
• Max radius bending (standard mobile mold): 14 (manufacturer unit).
• Material compatibility: Copper & Aluminum.
• Positioning stopper: Manual / Automatic; programmable length stopper (20 positions).
• Machine weight: 1700 kg.
• Mounting: Wheel base (mobile).
• Dimensions (L×W×H): 225 × 148 × 187 cm.
• Operators required: 1–2 persons.
