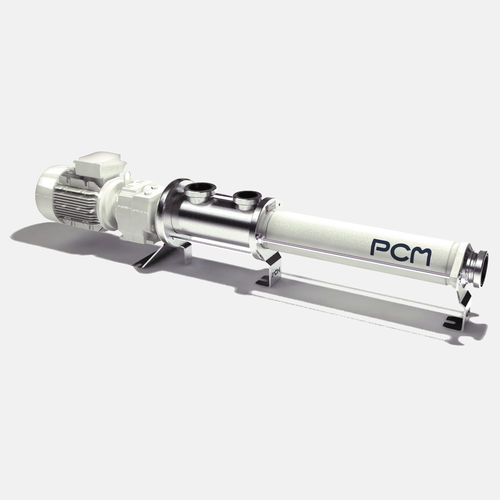

Progressive cavity pump PCM EcoMoineau™ Cfor clear waterfor chemicalsfor food products
Add to favorites
Compare this product
Characteristics
- Technology
- progressive cavity
- Fluid
- for clear water, for chemicals, for food products
- Operation
- with electric motor
- Priming
- self-priming
- Mobility
- stationary, mobile
- Domain
- industrial, for the food industry, for the pharmaceutical industry, for the wine industry, medical, for the cosmetics industry, sanitary, butter production line
- Applications
- process, transfer, rinsing, high-pressure cleaning, transport, control, for precision applications, discharge, high-temperature, sterility test, metering, injection, screw for oenological processes, high-volume, circulation, distribution, sewage, cleaning, feed, filling, medium-pressure, for pumping stations, volumetric dispensing, high-purity, suction
- Material
- stainless steel
- Fluid specification
- for abrasive fluids, for solids-laden fluids, for corrosive fluids, for high-viscosity products, flavouring, for high-purity fluids
- Protection level
- secure, chemical-resistant, standard, high-strength, corrosion-resistant, rugged, ATEX, water-resistant, waterproof, explosion-proof, waterproof
- Other characteristics
- compact, custom-made, mechanical, small, close-coupled, open, small-size, high-performance, high-power, heavy-duty, with mechanical seals, flange, for fluids, integrated, seal, custom, OEM, adjustable, high-flow, high-reliability, line shaft, modular
- Flow
Min.: 0.02 m³/h
(0.70629 ft³/h)Max.: 240 m³/h
(8,475.52001 ft³/h)- Pressure
Min.: 4 bar
(58.015 psi)Max.: 24 bar
(348.091 psi)- Power
Min.: 0.37 kW
(0.5 hp)Max.: 45 kW
(61.18 hp)- Fluid temperature
Min.: 0 °C
(32 °F)Max.: 95 °C
(203 °F)
Description
The PCM EcoMoineau™ C is the shortest stainless steel Progressing Cavity Pump in the market. This new Eco designed and compact pump is dedicated for food markets (FDA and European Food regulations compliant materials).
Its revolutionary design combines the legendary performance and the reliability of PCM Progressing Cavity Pump technology with a highly modular, eco-friendly design. The EcoMoineau™ C pump requires less space for installation which reduces costs and facilitates its integration. Furthermore, this new pump is very easy and quick to dismantle.
Space saving
42% shorter - 57% lighter
Its revolutionary design combines the legendary performance and reliability of PCM Progressing Cavity Pump technology with a highly modular, eco-friendly design. The EcoMoineau™ C pump requires less space for installation which reduces costs and facilitates its integration.
Eco Design pump
10% less power consumption
The EcoMoineau™ C pump is lighter (less raw materials) and uses 10% less power than most Progressing Cavity Pump’s on the market.The energy used to manufacture, transport and operate the EcoMoineau™ C pump is therefore optimized.
Easy and quick dismantling
23% maintenance time saving
The EcoMoineau™ C pump is made with fewer parts compared to competitors models. This new stainless steel pump has a multiple of design features that make installation, operation and servicing easier than ever before.
Versatile construction
Integrated construction
Cost effective solution including single bellow mechanical seal (self positioning)
Shortest and lightest design
Monobloc and bearing construction
