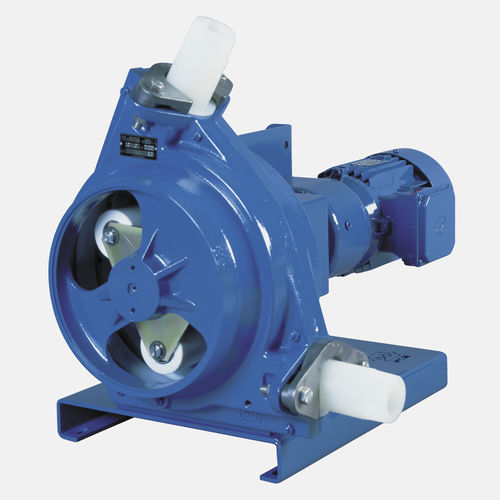

Peristaltic pump PCM Delasco™ Z
for wastewaterfor chemicalsoil

Peristaltic pump - PCM Delasco™ Z  - PCM - for wastewater / for chemicals / oil
Peristaltic pump - PCM Delasco™ Z  - PCM - for wastewater / for chemicals / oil
Add to favorites
Compare this product

Characteristics

Technology
peristaltic
Fluid
for wastewater, for chemicals, oil
Operation
electric
Priming
self-priming
Mobility
stationary
Domain
industrial, chemistry
Applications
transfer, discharge, process, dosing, circulation, treatment, feed, suction, chemical process, for low-pressure applications
Material
PTFE
Fluid specification
for abrasive fluids, for corrosive fluids
Protection level
abrasion-resistant, corrosion-resistant, ATEX
Other characteristics
low-pressure, low-flow
Flow

Min.: 0 m³/h
(0 ft³/h)

Max.: 20 m³/h
(706.29333 ft³/h)

Pressure

Min.: 0 bar
(0 psi)

Max.: 2 bar
(29.008 psi)

Fluid temperature

Min.: 0 °C
(32 °F)

Max.: 120 °C
(248 °F)

Description

The low-pressure peristaltic pump that reduces your maintenance costs. The peristaltic pumps of the PCM Delasco™ range stand out for their ability to meet a multitude of applications thanks to their various configurations and the variety of elastomeric tubes available, thus offering great versatility and ease of use. In these peristaltic pumps, only the tube meets the pumped fluid, making the PCM Delasco™ Z pump an ideal solution for the transfer of various fluids. Particularly suitable for pumping highly acidic or alkaline products, the peristaltic pump overcomes the risk of damage to castings or other metal components, which are often vulnerable to abrasion. In addition, the transfer through the tube is done without stirring or stirring the product, a crucial feature for the pumping of fragile products or emulsions such as latex. The PCM Delasco™ Z series of peristaltic pumps are specifically designed for low-pressure applications. Its Total Cost of Ownership (Life Cycle Cost) is optimized at each phase of the pump's life cycle, encompassing operation and maintenance. Benefits QUICK AND EASY MAINTENANCE Only one wear part: the tube The only regular maintenance operation is lubrication The tube can be changed without disassembling the pump VERSATILITY Low-flow fluid dosing and transfer Ideal for pumping corrosive, abrasive and brittle fluids Dry running possible without damaging the pump Wide range of tubes to suit all applications REDUCED LIFE CYCLE COSTS Reduced maintenance costs and time Reduced energy consumption
