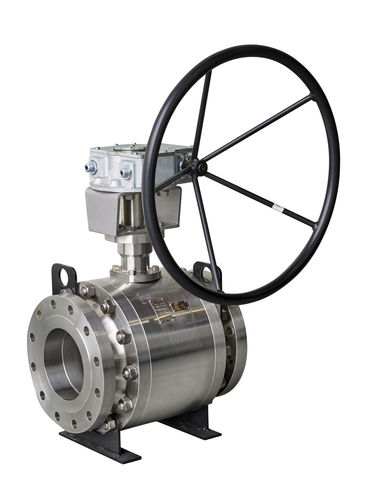

Ball valve APT3
leverwith handwheelpneumatic

ball valve
ball valve
ball valve
Add to favorites
Compare this product

Go to the Penta Srl website for more information

Characteristics

Type
ball
Operation
lever, with handwheel, pneumatic
Function
flow control, shut-off
Media
for water, for oil, for chemical products, for fuel
Body
with flange, 3-piece, stainless steel, carbon steel
Applications
for industrial applications, for the chemical industry, industrial, process, for the gas industry, for the petroleum industry, refinery
Number of channels
2-channel
Fluid specification
for aggressive media, for flammable fluids, for hazardous fluids
Other characteristics
ISO, ANSI, standard, bidirectional, high-temperature, SIL 3, ATEX, fire-safe
DN

Max.: 10 in

Min.: 6 in

Pressure

Max.: 100 bar
(1,450.4 psi)

Min.: 10 bar
(145 psi)

Temperature

Max.: 400 °C
(752 °F)

Min.: -46 °C
(-51 °F)

Description

Metal seated valve with a bound ball suitable for high temperatures. APT3 model is a trunnion 3 pieces ball valve characterized by three pieces Split Body construction. Like all other Penta valves, 3 pieces ball valves APT3 are bidirectional, include automatic discharge of overpressure in the body cavities and they are Double Block and Bleed. Live Loaded Design stem packing. The stem of Penta 3 pieces ball valve can be produced in three different lengths in order to avoid the overheating of the operator (actuator or gearbox).
