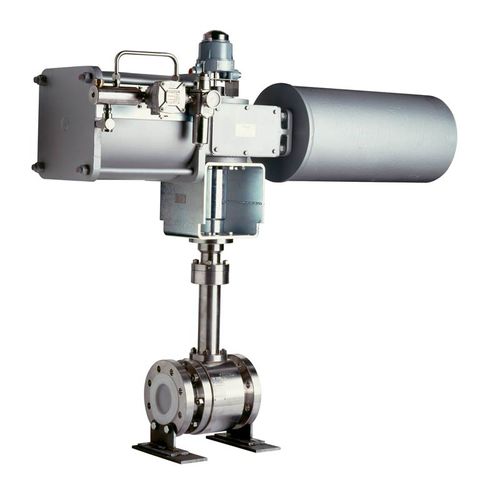

Ball valve SATleverwith handwheelpneumatic
Add to favorites
Compare this product
Characteristics
- Type
- ball
- Operation
- lever, with handwheel, pneumatic
- Function
- flow control
- Media
- for liquefied petroleum gas, for natural gas, for CO2, for nitrogen, for LNG
- Body
- with flange, stainless steel, carbon steel
- Applications
- cryogenic
- Number of channels
- 2-channel
- Other characteristics
- ISO, ANSI, bidirectional, SIL 3, with cryogenic component, ATEX
- DN
Min.: 1 in
Max.: 10 in
- Pressure
Min.: 10 bar
(145 psi)Max.: 250 bar
(3,625.9 psi)- Temperature
Min.: -196 °C
(-321 °F)Max.: 200 °C
(392 °F)
Description
Trunnion metal seated ball valve for cryogenic services.
Trunnion cryogenic ball valve model is the extension of the SAT model down to low temperatures.
The design philosophy involves unique technical solutions to meet the best reliability as many field applications have demonstrated.
Like all PENTA production, trunnion cryogenic ball valve SAT crio is equipped with metallic seats in PENTAFITE (down to 100 °C max.) or with polymeric seats for lower working temperature, resulting ball valves with absolutely ZERO LEAKAGE.
SAT Crio Trunnion valves are all bidirectional, provided with automatic body cavity pressure relief arrangement as like as cryogenic stem elongation.
Live Loaded Design stem packing.
