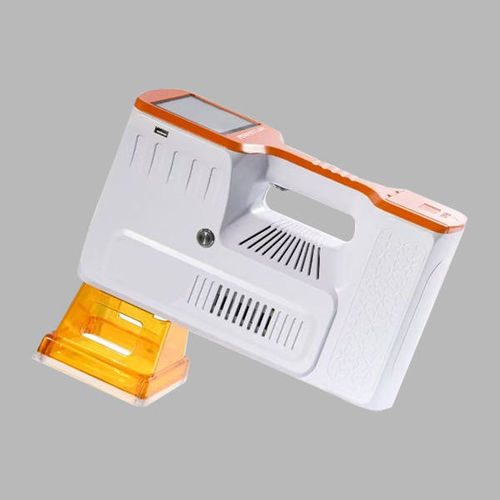

Fiber laser marking and engraving machine PEDB-150

for stainless steelpaperwood

Product Overview
The PEDB-150 is a 20W handheld fiber laser marking and engraving machine designed for portable stainless-steel nameplate and general metal marking. Compact all-in-one construction and embedded 5-inch control screen support indoor and field use while delivering precise permanent marks on a range of materials.

Product Details
Place of Origin: China
Brand Name: Perfect Laser
Certification: CE
Model Number: PEDB-150
Machine Material: Engineering Plastics
Laser Type: Fiber Laser
Output Power: ≥20W
Laser Wavelength: 1064 nm
Printing Method: High-precision two-dimensional scanning
Marking Speed: ≤7000 mm/s
Battery Capacity: 6 Ah
Machine Net Weight (Fixed Focus 100×100): 4 kg
Control Box Size (Fixed Focus 100×100): 339 mm × 160 mm × 273 mm

Machine Features

• High-speed galvanometer enabling marking up to 7000 mm/s; selectable marking areas 50×50 mm and 100×100 mm.
• Hot-swappable high-capacity lithium battery compartment; typical runtime 3–5 hours depending on use and environment.
• Proprietary control chip for real-time intelligent matching and monitoring of marking performance.
• Integrated industrial control panel with embedded 5-inch touchscreen for on-device operation.
• Portable all-in-one design for flexible on-site or bench operation.

Application

• Applicable materials: stainless steel, metal, wood, plastic, sheet metal, cardboard and other common materials.
• Applicable industries: manufacturing, packaging, construction, electronics, maintenance and field marking tasks.

Technical Data
Model: PEDB-150
Laser type: Fiber Laser
Output power: ≥20W
Laser wavelength: 1064 nm
Maximum pulse energy: 0.67 mJ
Frequency adjustable range: 27–60 kHz
Operating system: P9
Cooling system: Air cooling (normal temperature)
Marking type: Dot matrix and vector (all-in-one)
Reflector size (standard): 10 mm
Marking range: 100×100 mm or 50×50 mm (selectable)
Positioning method: Red light positioning
Print speed: Up to 650 characters/second (depends on material and content)
Supported image formats: BMP/PNG/JPG/JPEG/PLT/GIF/PBM (PLT recommended)
Supported codes: CODE39, CODE128, CODE126, EAN13, PDF417, 01CODE, QR, AZTECCODE, DM, GS1DM, DOTCODE, HANXINCODE
Maximum power consumption: ≤150 W

Packaging & Delivery

• Sea-worthy or air-worthy packing options.
• Typical lead time: 5–8 business days (subject to availability).
• Professional packing and logistics handling.

Competitive Advantages

• Compact handheld design for on-site and distance-free marking (configuration dependent).
• Hot-swappable battery for extended field operations.
• Wide compatibility with image and barcode formats.
• After-sales support and flexible payment terms.

Characteristics / Specifications

• Model: PEDB-150
• Brand: Perfect Laser
• Laser type: Fiber Laser, 1064 nm
• Output power: ≥20W
• Max pulse energy: 0.67 mJ
• Frequency range: 27–60 kHz
• Marking range: 100×100 mm or 50×50 mm
• Marking speed: ≤7000 mm/s
• Print speed: up to 650 characters/s
• Battery: 6 Ah, hot-swappable (typical 3–5 h)
• Cooling: Air cooling
• Power consumption: ≤150 W
