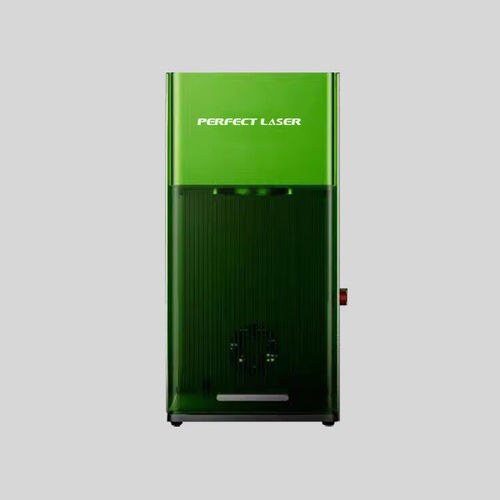

Laser marking and engraving machine PEDB-101

for stainless steelacrylicaluminum

Product overview
This desktop galvanometer laser marking and engraving machine (Model: PEDB-101) integrates two 20W laser sources (semiconductor blue 455 nm and fiber infrared 1064 nm) to mark, engrave and cut a wide range of materials. It supports flat, relief and curved-surface processing, automatic and manual focusing, camera/border positioning and online/offline control modes suitable for prototyping and light industrial production.

Key features

• Dual laser sources (blue 455 nm and infrared 1064 nm) for extended material compatibility.
• Multiple processing modes: bitmap engraving, vector engraving/fill/line, and cutting.
• Flexible control: PC/mobile/tablet via USB/Wi‑Fi/IP or offline via touch panel with internal/USB storage.
• Automatic focusing plus manual focus option; camera and border positioning for accurate alignment.
• Safety protections: protective cover with lid-open-to-stop, safety key and overheat automatic shutdown.
• Preview function to verify design and position before processing.

Applications
Suitable for materials that absorb blue light (e.g. black alumina, metal business cards, acrylic, aluminum, wood, corrugated paper, stones) and materials that absorb infrared (e.g. copper sheets, stainless steel, aluminum, metal parts). Ideal for sample making, small-series production, personalization and prototyping.

Technical data
Model: PEDB-101
Laser power: Blue semiconductor 20W; Infrared fiber 20W
Spot size: Blue ≥0.08 × 0.1 mm; Infrared ≥0.03 × 0.03 mm
Wavelengths: Blue 455 nm ±15 nm; Infrared 1064 nm ±5 nm
Laser lifetime: ≥8000–10000 hours
Machine dimensions: 493 × 253 × 373 mm
Working volume (internal): ≤220 × 220 × 145 mm (L×W×H); conveyor: ≥220 × 500 × 81.5 mm
Max processing height/rotational diameter: 145 mm
Max speed: 10000 mm/s; preview speeds: square 24000 mm/s, irregular 16000 mm/s
Control precision: min control 0.00482 mm; repeat positioning 0.001006 mm
Power supply: 24–25V DC, ~10.42–11A (total adapter power 250–275W, two adapters)

Software & processing

• Connection: USB, Wi‑Fi, IP
• Supported systems: Android, iOS, iPadOS, Windows, macOS
• Supported software: XCS, LightBurn
• File formats: JPG, JPEG, PNG, BMP, TIF, DXF, SVG, etc.
• Focusing: automatic and manual; positioning: camera and border; offline: touch panel with 7 GB project storage.

Commercial information

• Place of origin: China
• Brand: Perfect Laser
• Certifications: CE / ISO / TUV / SGS
• Minimum order quantity: 1 set
• Packaging: wooden case
• Delivery time: 5–7 working days
• Payment terms: L/C, T/T, Western Union
• Supply capacity: 500 sets/month
• Warranty: 12 months

Specifications

• Model: PEDB-101
• Dual laser sources: 455 nm (blue) + 1064 nm (infrared), 20W each
• Internal processing area: ≤220 × 220 × 145 mm
• Max processing speed: 10000 mm/s; preview up to 24000 mm/s
• Minimum control precision: 0.00482 mm; repeat positioning: 0.001006 mm
• Connectivity: USB, Wi‑Fi, IP; supported software: XCS, LightBurn
• Operating temp: 0 °C to +35 °C; storage: -10 °C to +60 °C
