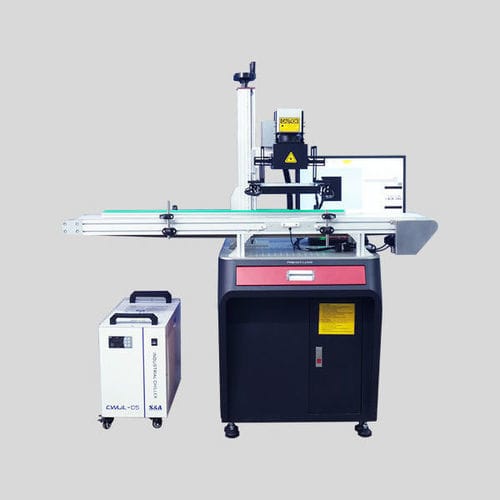

UV laser marking and engraving machine PEDB-UV-1

plasticmetalglass

Product Overview
Perfect Laser PEDB-UV-1 is an industrial UV laser marking and engraving machine with a CCD camera automatic visual positioning system, engineered for ultra-fine marking on sensitive materials within production lines. It integrates a 5 MP HIKVISION CCD with autofocus and delivers positioning accuracy up to 0.1 mm. The system supports object placement at any angle on a conveyor for automatic identification and marking. Marking area: 175 mm × 175 mm. Laser wavelength: 355 nm.

Product Features

• 355 nm UV pumped laser source with very small focusing spot and low thermal impact on substrates.
• CCD camera auto-vision positioning allows parts to be placed anywhere on the conveyor for automatic detection and marking.
• Accurate large scanning/marking area of 175 mm × 175 mm.
• No fixture required for positioning, reducing setup time and tooling costs.
• Integrated conveyor for automatic batch marking to support high-speed production.
• Recommended water chiller: CW-5000 with air-refrigerator function for effective heat dissipation.
• Supports common graphic formats: AI, BMP, DST, DWG, DXF, DXP, LAS, PLT.
• Software compatible with Windows 7 and Windows 10.

Applications
Suitable for ultra-fine marking and engraving on lithium batteries, electronic components, ICs, charging heads, food and pharmaceutical packaging materials, micro-hole drilling, high-speed glass processing and precision pattern cutting on silicon wafers.

Packaging & Delivery

• Packaging: wooden case.
• Minimum Order Quantity: 1 set.
• Delivery time: 7–12 working days.

Technical Data
Place of Origin: China; Brand Name: Perfect Laser; Certification: CE / ISO / TUV / SGS; Model Number: PEDB-UV-1; Product Name: UV Laser Marking Engraving Machine; Laser Type: UV; Laser Wavelength: 355 nm; Marking Area: 175 mm × 175 mm; Camera Pixel: 5 MP; Camera Brand: HIKVISION; Camera Positioning Accuracy: 0.1 mm; Camera Software Environment: Windows 7, Windows 10; Dongle: 1 visual positioning software dongle; Marking Object Placement Requirements: any angle; Power Supply: 220V/50-60Hz; Cooling System: water cooling (CW-5000 recommended); Laser Life: ≥100,000 hours; Supported Graphic Formats: AI, BMP, DST, DWG, DXF, DXP, LAS, PLT.

Technical Specifications

• Model: PEDB-UV-1
• Brand: Perfect Laser
• Laser type: UV (355 nm)
• Marking area (format): 175 mm × 175 mm
• Camera: 5 MP HIKVISION CCD
• Positioning accuracy: 0.1 mm
• Auto-focusing: Yes
• Supported OS: Windows 7, Windows 10
• Supported formats: AI, BMP, DST, DWG, DXF, DXP, LAS, PLT
• Cooling: Water cooling (CW-5000)
• Power supply: 220V/50-60Hz
• Conveyor: Yes (for automatic batch marking)
• Marking object placement: Any angle
• Estimated laser life: ≥100,000 hours
