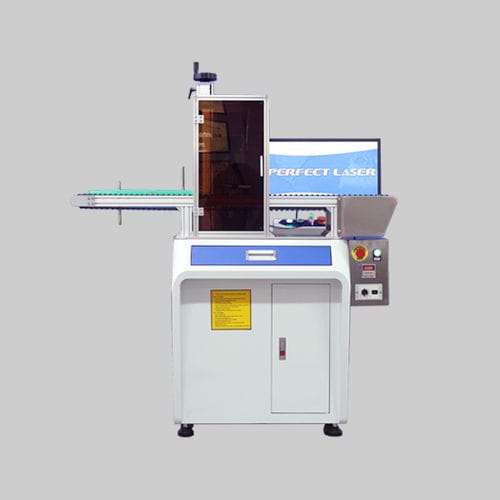

Fiber laser marking and engraving machine PEDB-460 Pro

aluminummetalfor stainless steel

Product Description
This fiber laser marking machine is designed for precision items such as fountain pens and small cylindrical parts. Model PEDB-460 Pro integrates a fiber laser source and a high-precision galvanometer to deliver stable power, fine beam quality and fast, repeatable marking with lasting contrast and clarity.

Machine Features

• Conveyor-compatible design for in-line (fly) marking: smart sensors detect parts, trigger marking and provide automatic counting for high-volume production.
• Auto-focus system and adjustable marking depth: the head adapts to material thickness for precise engraving of complex designs and logos.
• High duty cycle components: full air cooling, long laser lifetime (up to 100,000 hours) and low maintenance with no consumables.
• High-speed galvanometer and robust motorization: supports continuous 24/7 operation and marking rates up to ~60 pens/min (configuration dependent).
• User-friendly software: flexible control of marking content, speed and conveyor spacing for customized production and improved traceability/anti-counterfeiting.

Application
Engineered for the pen and small-parts industry: ideal for marking fine patterns, serial numbers, logos and text on metals (gold, silver, stainless steel, iron, aluminum, copper) and many plastics.

Technical Data (table)
Product Name: Pen Laser Engraving Machine PEDB-460 Pro
Output Power: 20W / 30W / 50W
X Axis Stroke: 300–500 mm (customizable)
Marking Speed: ≤7000 mm/s
Marking Size: 110 × 110 mm (standard, customizable)
Minimum Character Height: 0.2 mm
Repeat Accuracy: ≤24 μrad
Marking Depth: up to 0.5 mm (material dependent)
Minimum Line Width: 0.06 mm (material dependent)
Voltage: AC 220V 50KHz
Motor: Stepper motor / Servo motor (optional)
Displacement Positioning Accuracy: 0.05 mm / 0.02 mm
Displacement Repeat Positioning Accuracy: 0.02 mm / 0.01 mm
Displacement Speed: 100–300 mm/s

Packaging & Delivery

• Packaging suitable for sea or air transport.
• Typical lead time: 5–8 working days.
• Professional packing team and logistics partners to ensure safe delivery.

Competitive Advantages

• Designed for automated, high-volume marking of small parts to reduce labour costs.
• Precise, durable marking suitable for anti-counterfeiting and traceability.
• Stable, low-maintenance system with long service life and low failure rate.
• Flexible payment and global export experience; after-sales support available.

Technical Specifications

• Model: PEDB-460 Pro
• Brand: perfectlaser
• Product Type: Pen Laser Engraving Machine (fiber)
• Output Power options: 20W, 30W, 50W
• Standard Marking Area: 110 × 110 mm (customizable)
• X Axis Stroke: 300–500 mm (customizable)
• Max Marking Speed: ≤7000 mm/s
• Minimum Character Height: 0.2 mm
• Repeat Accuracy: <= 24 μrad
• Marking Depth: up to 0.5 mm (material dependent)
• Minimum Line Width: 0.06 mm (material dependent)
• Voltage: AC 220V 50KHz
• Motor Options: Stepper / Servo
• Positioning Accuracy: 0.05 mm / 0.02 mm
• Repeat Positioning Accuracy: 0.02 mm / 0.01 mm
• Travel Speed: 100–300 mm/s
