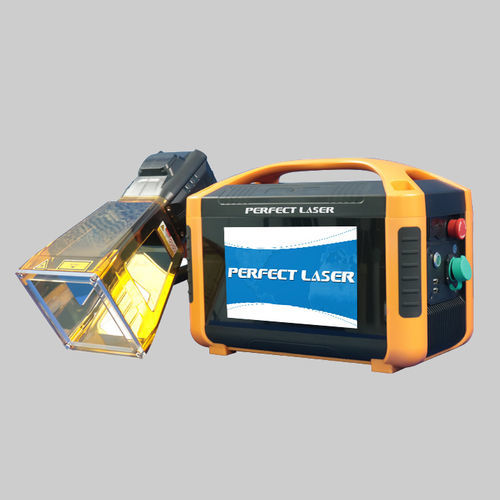

Fiber laser marking machine PEDB-160

plasticportablehandheld

Product Description
The handheld fiber laser marker PEDB-160 (Perfect Laser) is a portable, air-cooled machine designed for precise 2D scanning marking on metals and other materials. It runs on Linux and supports BMP / DXF / HPGL / JPEG / PLT file formats. The device combines dot-matrix and vector marking modes for detailed, traceable marks and delivers marking speeds up to 650 characters/second, suitable for industrial identification and traceability tasks.

Features

• Portable handheld design with durable engineering-plastic housing resistant to water and dust.
• Integrated 2D magnetic-levitation galvanometer scanning head for fast, accurate positioning.
• Long-life fiber laser source with minimal maintenance and adjustable frequency (30–60 kHz).
• Embedded 7-inch control screen, responsive touch interface and red-light positioning.
• Capable of marking flat and inclined surfaces on-site; battery standby up to 6–8 hours.
• Supports text, numbers, dates, logos, graphics, QR codes and barcodes.

Detail Information

• Place of Origin: China
• Brand Name: Perfect Laser
• Certification: CE / ISO / TUV / SGS
• Model Number: PEDB-160
• Operating System: Linux
• Marking Method: High-precision 2D scanning
• Ambient Relative Humidity: 30% - 85% RH
• File Formats: BMP / DXF / HPGL / JPEG / PLT

Packaging and Order Info

• Minimum Order Quantity: 1 Unit
• Price: Negotiable
• Packaging Details: Sea-Worthy Packing or Air-Worthy Packing
• Delivery Time: 5-10 Working Days
• Payment Terms: T/T, L/C, PayPal, Western Union
• Supply Ability: 400 sets per month

Applications
The PEDB-160 is suitable for industrial marking applications including automotive components, aerospace parts, electronics, jewelry and medical devices where durable serial numbers, barcodes, logos and traceability marks are required. Its operation in 30%–85% RH environments ensures reliable performance across varied production conditions.

Technical Specifications

• Product Name: Handheld Portable Fiber Laser Marking Machine
• Laser Power: 20W / 30W
• Laser Wavelength: 1064 nm
• Marking Speed: ≤7000 mm/s (spec sheet) / 650 characters/second (listed)
• Maximum Pulse Energy: 0.75 mJ
• Adjustable Frequency Range: 30–60 kHz
• Cooling Method: Air Cooling
• Marking Line Type: Dot Matrix + Vector (all-in-one)
