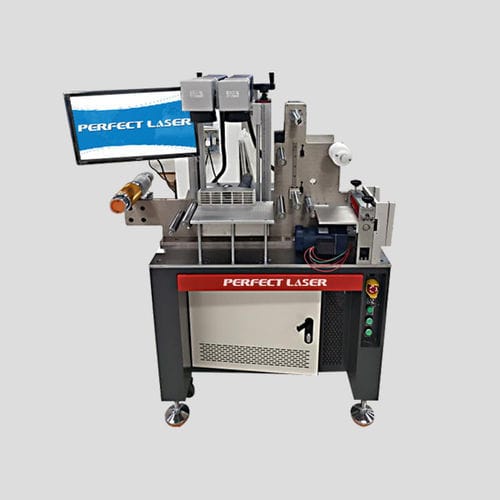

Fiber laser cutting and engraving machine PEDB-2060

laserwith control softwarewith automated loading

Product Overview
The PEDB-2060 double-head eyelash laser cutting machine uses a 30W MOPA source with automatic feeding and vacuum adsorption to deliver high-speed, burr‑free cutting for natural lash and false eyelash production. Designed for production lines, it combines a single X-axis motion module, manual lifting table and dedicated software for repeatable, precise cutting.

Model
PEDB-2060

Machine Features

• 30W MOPA laser with double-head configuration for stable, high-precision cutting.
• Automatic feeding system for continuous production of false lashes and natural lash processing.
• Vacuum adsorption fixture (200 × 600 mm) and X-axis motion module (stroke 400 mm) for accurate positioning.
• Manual lifting table (170–550 mm, stroke 400 mm) and manual focus adjustment for quick setup.
• Independent professional software optimized for eyelash cutting workflows.
• Integrated dust removal and air purification to maintain a clean cutting environment.

Applications

• Manufacture of false eyelashes and processing of natural lash products.
• Suitable for cosmetic production lines, eyelash beauty factories and contract manufacturing.

Technical Data (from product table)
Product Name: Double-head eyelash laser cutting machine
Laser: 30W MOPA
Model: PEDB-2060
Manual lifting table: 170–550 mm (stroke 400 mm)
X-axis motion module: stroke 400 mm
Vacuum adsorption fixture: 200 mm × 600 mm
Field lens: F100
Galvanometer: 10 C
Software: Independent R&D
Fan: 550W (220V)
Maximum device power: 1.5 kW
Rated current: 6 A
Basic frequency: 10–60 Hz
Air pressure: 0.6–0.8 MPa
Operating voltage: 220V
Operating temperature: 20–35°C (recommend stable ±3°C)
Operating humidity: 50–80% RH

Detail Information (summary)
Place of Origin: China
Brand Name: Perfect Laser
Certification: CE
Minimum Order Quantity: 1 Set
Supply Ability: 5000 Sets Per Year
Delivery Time: 10–15 Working Days
Payment Terms: L/C, T/T

Packaging & Delivery

• Sea-worthy or air-worthy packing according to shipping method.
• Professional packing team to ensure safe transit.
• Typical lead time: 10–15 working days.

Competitive Advantages

• High automation for reduced labor and consistent output.
• Dedicated software and industrial-grade components for reliable production.
• After-sales support and flexible payment terms.

Technical Specifications

• Model Number: PEDB-2060
• Laser Type: 30W MOPA
• Galvanometer: 10 C
• Field Lens: F100
• Manual lifting table travel: 170–550 mm (stroke 400 mm)
• X-axis stroke: 400 mm
• Vacuum adsorption fixture size: 200 × 600 mm
• Fan Power: 550W (220V)
• Maximum Device Power: 1.5 kW
• Rated Current: 6 A
• Basic Frequency: 10–60 Hz
• Air Pressure: 0.6–0.8 MPa
• Operating Voltage: 220V
• Operating Temperature: 20–35°C
• Operating Humidity: 50–80% RH
• Certification: CE
