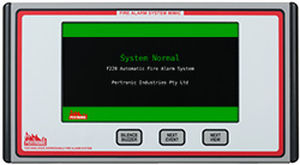

Fire alarm display panel NET2-AMMA

programmablenetworked

Product description
The Pertronic Net2 Alarm Mini-Mimic provides remote access to alarm and warning status from a Net2 network. It displays only Alarms and Warning System On and is intended for staff responsible for alarm response. The unit can be programmed using FireUtils® to show selected zones, selected F220 panels, or the entire network.

Features

• Remote display for Pertronic Net2 Network
• Seven-inch (180 mm) 800 x 480 pixel TFT colour LCD
• Coloured display screens and red status bars for clear alarm identification
• Easily readable 5 mm alarm text height
• NEXT VIEW button to switch between event-type screens
• NEXT EVENT button to step through devices or alarms in lists
• SILENCE BUZZER button, local alarm buzzer and internal disable switch
• Output for remote alarm buzzer
• RS-485 compatible communications; cable run up to 2 km with Pertronic RS-485 Repeater/Splitter

Ordering Information
Product Code | Description
NET2-AMMA | F220 Network Alarm Mini-Mimic AUS

Documents
Datasheet available (product datasheet provided by manufacturer).

Technical specifications

• Model / Product Code: NET2-AMMA
• Commercial name: Net2 Alarm Mini-Mimic
• Display: 7 inch (180 mm) colour TFT LCD
• Resolution: 800 x 480 pixels
• Alarm text height: 5 mm
• Displays shown: Alarms and Warning System On (configurable to selected zones/panels or entire network)
• Programmable tool: FireUtils®
• Controls/buttons: NEXT VIEW, NEXT EVENT, SILENCE BUZZER
• Buzzer: local alarm buzzer; internal local buzzer disable switch; output for remote alarm buzzer
• Communications/cabling: RS-485 compatible; cable length up to 2 km when using Pertronic RS-485 Repeater/Splitter
