Product Overview

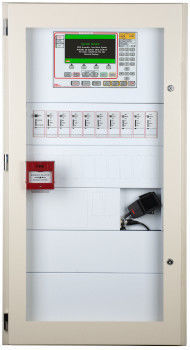

The Pertronic F220 is a modular, expandable and networkable intelligent fire panel designed for commercial and industrial installations. Approved to Australian standard AS 7240.2 (based on ISO 7240.2), the F220 identifies the exact location of alarm or signal activations and integrates with Pertronic FireMap® for graphical site visualisation.

Display and Interface
The panel features a seven inch 800 x 480 pixel colour TFT LCD and a separate keyboard to maximise display area. Alarm status is presented with clear red status bars and large text for rapid identification. Configuration and interrogation are supported via Ethernet or USB and the Pertronic FireUtils® PC application.

Key Capabilities

• 7 inch 800 x 480 pixel TFT colour display
• Separate keyboard to maximise visible information
• Automatic, precise location identification for alarms and signals
• Clear Alarm View with easily readable 5 mm text height
• Monitors and controls up to 20 analogue addressable (AA) loops with up to 3,180 sensors
• Supports up to 1,980 input/output modules, manual call points and AA alarm devices
• Networkable — up to 160 panels on F220‑Net2 high‑speed fault‑tolerant network; fibre‑optic adapters supported
• 32‑bit RISC processor on each panel, display unit and network node
• Optional Occupant Warning System with built‑in test and custom audible signals
• Versatile cause & effect programming: logic blocks, timers, fan and deluge control
• Virtual detection for high sensitivity with nuisance alarm immunity
• User testing and selective disabling of outputs, sensors, zones and network inputs from keyboard
• Interfaces: Ethernet, USB memory stick, RS‑485 serial buses; EWIS interface available
• Specialised history logs retain critical events
• Easy upgrade path from Pertronic F120A to F220
• Wide range of cabinet sizes including weatherproof options; customised assembly available
• Independently tested and ActivFire listed (afp‑3054) to AS 7240.2, AS 7240.4, AS 7240.13 and AS 4428.3

Notes
Product codes on the site specify white front plates by default. To order grey front plates add suffix "-G" to the product code (for example: F220‑A28U/5A‑G).

Ordering Information
Typical codes include:

• F220‑A13U/5A‑NOASE — 13U cabinet, 2 loops, 5 A PSU
• F220‑A16U/11A — 16U cabinet, 2 loops, 11 A PSU
• F220‑A28U/22A — 28U cabinet, 2 loops, 22 A PSU
• F220‑A40U/11A — 40U cabinet, 2 loops, 11 A PSU
• F220‑A28US/5A/NCU — 28U slim cabinet, 2 loops, 5 A PSU, Network Control Unit

See the datasheet for the full list of codes and customised configurations.

Documents

• Datasheet
• ActivFire Certificate
• F220 Engineering Specification
• F220 Operator Manual

Technical specifications

• Display: 7 inch TFT LCD, 800 x 480 pixels
• Maximum AA circuits: 20 loops
• Maximum sensors: up to 3,180
• Maximum input/output modules and devices: up to 1,980
• Network: Up to 160 panels on F220‑Net2; fibre‑optic adapters supported
• Processor: 32‑bit RISC per panel/node
• Interfaces: Ethernet, USB, RS‑485, PC via FireUtils
• Optional: Occupant Warning System, EWIS, amplifier options (60W, 120W), Network Control Unit
• Cabinets: 600 mm, 10U, 13U, 16U, 22U, 28U, 28US (slim), 40U; weatherproof options
• Standards/Approvals: AS 7240.2, AS 7240.4, AS 7240.13, AS 4428.3; ActivFire listed (afp‑3054)
