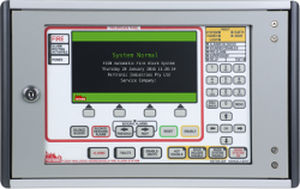

Managed network controller NET2-NCUA

for remote accessprogrammable

Product overview
The Pertronic Net2 Network Control Unit (NCU) NET2-NCUA provides remote control and monitoring of a Net2 Network System. It can be programmed using FireUtils® to control selected F220 panels, display information from additional networked F220 panels, or be configured to manage an entire Net2 network.

Display
The NET2-NCUA uses the same 7 inch (180 mm) colour TFT LCD (800 x 480 pixels) as the F220 fire alarm control panel. Coloured display screens and large 5 mm alarm text clearly indicate panel status and Alarm mode.

Features

• Remote control unit for Net2 Network systems
• Seven-inch 800 x 480 pixel colour TFT LCD
• Coloured display screens for clear panel status identification
• Easily readable 5 mm text height on Alarm screen
• Keyboard-display identical to F220 fire panel keyboard-display including:
  • Full F220 menu controls with Door Holder and ACF Disable (individual LED indication)
  • Cursor control keypad for event and menu navigation
  • Numeric keypad for menu navigation and data entry
  • Four context-sensitive soft function keys
• External control inputs: Warning System On ("TE"), Silence Alarms ("BCO")
• Local alarm buzzer with internal disable switch
• Output for remote alarm buzzer
• Cable length up to 2 km when using a Pertronic RS-485 Repeater/Splitter

Ordering information
Product Code | Description
NET2-NCUA | Net2 Network Control Unit in Full Function Mimic Case AUS

Documents
Datasheet

Caractéristiques / spécifications techniques

• Product: Net2 Network Control Unit (NET2-NCUA)
• Display: 7 inch (180 mm) colour TFT LCD, 800 x 480 pixels
• Alarm screen text height: 5 mm
• Keyboard/display identical to F220 fire panel keyboard-display
• Full F220 menu controls with Door Holder and ACF Disable (individual LED indication)
• Cursor control keypad; Numeric keypad; Four context-sensitive soft function keys
• External control inputs: Warning System On ("TE"), Silence Alarms ("BCO")
• Local alarm buzzer with internal disable switch and output for remote alarm buzzer
• Cable length: up to 2 km using Pertronic RS-485 Repeater/Splitter
• Ordering code: NET2-NCUA (Net2 Network Control Unit in Full Function Mimic Case AUS)
