Fire alarm control panel F220®

analogaddressableprogrammable

Product Overview

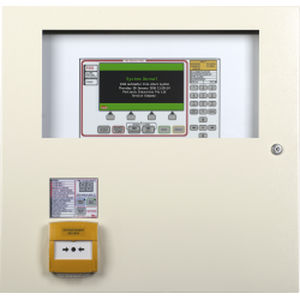

The Pertronic F220 Extinguishing Agent Release System provides automatic and manual control for one or more fire suppression systems. The solution integrates the Pertronic F220 analogue addressable fire panel with the ARC2 Agent Release Controller. A single F220 panel may host multiple ARC2 controllers; each ARC2 supervises and controls one suppression system.

Control Station Types

• Agent Control Station (ACS2): keyboard and display, Time-to-Discharge countdown, status/fault LEDs, local buzzer mute, Manual and Auto Mode controls.
• Local Control Station (LCS2): similar to ACS2 without fault LEDs for simplified local operation.

Operation and Manual Intervention
The system supports automatic or manual agent release. Manual Mode can prevent release at any time, including after automatic initiation. Each control station includes a lift-flap Manual Call Point (MCP) to trigger release manually.

AV Signs and Cabinets
Indoor and weatherproof audio-visual (AV) signs are available with selectable messages, audible signals and an optional high-visibility countdown timer. F220 panels are supplied in multiple cabinet sizes and styles, including slim and weatherproof options.

Features

• Fire suppression control based on Pertronic F220 analogue addressable panel
• Multiple ARC2 controllers per F220 panel
• Automatic or manual agent release with remote abort/disable from any control station
• Support for up to nine external control stations per ARC2

Agent Release Controller Features (per controller)

• Configurable automatic delay: 5–90 seconds
• Configurable manual delay (independent): 5–90 seconds

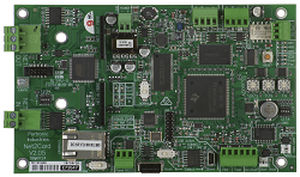

• RS485 communications with control stations; up to nine external stations
• Configurable agent release hold times: 20s, 30s, 60s, 5 min
• Low-pressure fault input; optional pressure-switch feedback to confirm release

Ordering Information

• F220-A10U/5A-ARC — F220, 10U cabinet with 2 loops, 5 A PSU, supplied with ARC2, white rackplates
• F220-A13U/5A-ARC — F220, 13U cabinet with 2 loops, 5 A PSU, supplied with ARC2, white rackplates
• F220-A13U/11A-ARC — F220, 13U cabinet with 2 loops, 11 A PSU, supplied with ARC2, white rackplates
• F220-A16U/5A-ARC — F220, 16U cabinet with 2 loops, 5 A PSU, supplied with ARC2, white rackplates
• F220-A16U/5A-ARC-EXT — F220, 16U cabinet with 2 loops, 5 A PSU, ARC with ACSDISP+OL on door, white rackplates
• F220-A16U/11A-ARC — F220, 16U cabinet with 2 loops, 11 A PSU, supplied with ARC2
• F220-A16U/11A-ARC-EXT — F220, 16U cabinet with 2 loops, 11 A PSU, ARC with ACS on external door
• F220-A28U/5A-ARC — F220, 28U cabinet with 2 loops, 5 A PSU, supplied with ARC2, white rackplates
• F220-A28U/11A-ARC — F220, 28U cabinet with 2 loops, 11 A PSU, supplied with ARC2, white rackplates
• F220-A28US/5A-ARC — F220, 28U slim cabinet with 2 loops, 5 A PSU, supplied with ARC2, white rackplates
• F220-A28US/11A-ARC — F220, 28U slim cabinet with 2 loops, 11 A PSU, supplied with ARC2, white rackplates

Documents

• Datasheet
• Agent Release System (ARC2) User Manual
• F220 Extinguishing Agent Control System Engineering Specification

Technical specifications

• System: Automatic control of one or more suppression systems based on Pertronic F220 with ARC2 controllers
• Controller per system: One ARC2 per suppression system; multiple ARC2s per F220 panel supported
• Control stations: ACS2 (full indicators/controls) and LCS2 (without fault LEDs); up to nine external stations per ARC2
• Manual intervention: Manual Mode to inhibit release; lift-flap MCP at each station
• AV signs: Indoor and weatherproof with selectable messages, audible signals and optional countdown timer
• Cabinets: Multiple sizes/styles including slim and weatherproof variants
• Delays: Automatic and manual delays configurable from 5 to 90 seconds
• Output hold times: 20 s, 30 s, 60 s or 5 min
• Communications: RS485 bus to control stations
• Fault inputs: Low-pressure fault input; optional pressure-switch feedback to confirm release
