RS-485 interface module FIBNET

fiber opticslocal area network

Overview

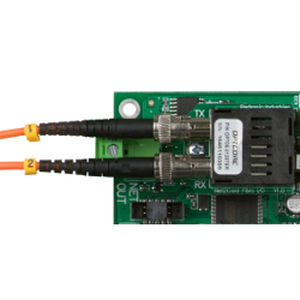

Pertronic Net2 Fibre Optic Converters (FIBNET) provide duplex fibre-optic network ports for the Pertronic Net2 Network Card (NET2CARD). Each converter module terminates one end of a fibre link segment and exposes separate RX and TX connectors for the link's dual-fibre cables. Converters are offered for both multi-mode and single-mode fibre and with either ST or SC connector types.

Features
Modules support multi-mode (MMF) and single-mode (SMF) operation and are available in ST (bayonet) or SC (push-in) connector formats. The NET2CARD accepts any combination of fibre converters and RS-485 copper connections. The card provides two network ports, NET IN and NET OUT, each configurable as Copper (no fibre converter), Multi-mode fibre (with FIBNET-MMF or FIBNET-MMF-SC) or Single-mode fibre (with FIBNET-SMF or FIBNET-SMF-SC). Ensure both ends of a fibre link use terminations compatible with the cable type.

Ordering Information
Product Code — Description
FIBNET-SMF-SC-15/13 — Single-mode, Single BiDir Fibre Converter for NET2CARD (60km), SC Connector, 1550nm Tx, 1310nm Rx
FIBNET-SMF-SC-13/15 — Single-mode, Single BiDir Fibre Converter for NET2CARD (60km), SC Connector, 1310nm Tx, 1550nm Rx
FIBNET-MMF — Multi-mode fibre converter for NET2CARD (2km), ST Connector
FIBNET-MMF-SC — Multi-mode fibre converter for NET2CARD (2 km), SC Connector
FIBNET-SMF — Single-mode fibre converter for NET2CARD (20 km), ST Connector
FIBNET-SMF-SC — Single-mode fibre converter for NET2CARD (20 km), SC Connector

Documents
Datasheet available for the Net2 fibre converters (product datasheet listed on product page).

Technical specifications

• Product family: FIBNET fibre optic converters for NET2CARD
• Function: Duplex fibre-optic converter module connecting one end of a fibre link segment to NET2CARD
• Connectors: Separate RX and TX on each module
• Connector types available: ST (bayonet) or SC (push-in)
• Fibre types supported: Multi-mode (MMF) and Single-mode (SMF)
• Range examples: MMF up to ~2 km; SMF up to 20 km or 60 km depending on model
• Example wavelengths (SMF BiDir models): 1550 nm Tx / 1310 nm Rx or 1310 nm Tx / 1550 nm Rx
• Compatibility: Works with Pertronic Net2 Network Card (NET2CARD); NET IN and NET OUT ports configurable as Copper, MMF or SMF
• Notes: Both ends of a fibre link must use terminations appropriate to the cable type
