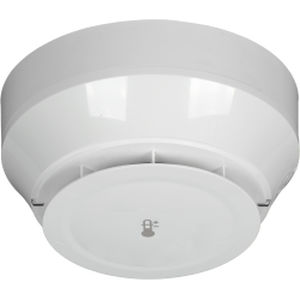

Heat detector 5251CPIpositionthermalLED
Add to favorites
Compare this product
Characteristics
- Detected entity
- heat, position
- Technology
- LED, thermal, AI
- Application
- for fire safety applications
- Output
- digital
- Other characteristics
- with alarm, fixed, continuous, addressable, with temperature sensor
Description
Product overview
The C Series intelligent addressable heat detectors include fixed-temperature model 5251CPI and rate-of-rise model 5251RCPI. The detectors continuously measure ambient temperature and report to the fire panel; the panel initiates alarm when the configured threshold is exceeded. Rate-of-rise detectors also alarm if temperature increases rapidly. A configured fire panel will display the location of any detector that reports alarm, fault or maintenance.
Key features
Ordering information
Documents
Technical specifications
The C Series intelligent addressable heat detectors include fixed-temperature model 5251CPI and rate-of-rise model 5251RCPI. The detectors continuously measure ambient temperature and report to the fire panel; the panel initiates alarm when the configured threshold is exceeded. Rate-of-rise detectors also alarm if temperature increases rapidly. A configured fire panel will display the location of any detector that reports alarm, fault or maintenance.
Key features
- Intelligent addressable (IA) communication with fire panel
- Temperature threshold configurable in the fire panel
- Rotary address switches for setting loop address
- Dual red LEDs indicate active detectors; LEDs blink when polled (blink can be disabled from panel)
- Optional remote LED indicator available
- Magnet test function activates detector and bypasses inbuilt delays for testing
- Compatible with B501AUS, B501AP and other System Sensor intelligent addressable bases; compatible bases may provide anti-tamper
- SAI Global StandardsMark listed to AS 7240.5 (certificate SMHK25312)
Ordering information
- BC5251CPI — Black cover only for 5251CPI & 5251RCPI (Heats)
- 5251CPI-IV — AA Fixed Temperature C Series Thermal Detector - Type "B" & "D" - Ivory
- 5251CPI-W — AA Fixed Temperature C Series Thermal Detector - Type "B" & "D" - White
Documents
- Datasheet
- Installation note
- SAI Global certificate SMK40640-2
Technical specifications
- Model: 5251CPI (fixed temperature) and 5251RCPI (rate-of-rise)
- Type: AA heat detector, C Series; fixed-temperature or rate-of-rise operation
- Addressing: Rotary address switches for IA loop
- Indicators: Dual red LEDs; polling blink; optional remote LED
- Testing: Magnet test function to activate detector and bypass delays
- Compatibility: Compatible with B501AUS, B501AP and other System Sensor IA bases; compatible bases may provide anti-tamper
- Standards: SAI Global StandardsMark listed to AS 7240.5 (certificate SMHK25312)
- Ordering codes: BC5251CPI (black cover), 5251CPI-IV (ivory), 5251CPI-W (white)
