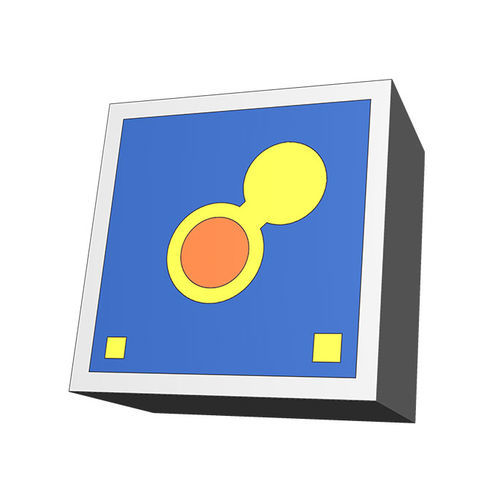

InGaAs photodiode XSJ-10-APD4-55-01

avalanchePIN

Description Avalanche photodiode chip (APD chip) is a kind of active device that provides a built-in gain and amplifies the photocurrent. This product features is anode on top and cathode on back, with top-illuminated active area size is Φ55μm for easy optical assembly; high responsivity, high multiplication factor and low dark current. The high-performance 2.5Gbps APD chip and TIA combined TO-CAN can improve the sensitivity of optical receiver, applications that enable data transmission for today’s fiber-to-the-home (FTTH). Features Φ55μm active area. Anode on top and cathode on back. Low dark current. Excellent responsivity and high gain. Data rate up to 2.5Gbps above. Excellent reliability: All chips have passed the qualification requirements as specified by Telcordia -GR-468-CORE. 100% testing and inspection. Applications 2.5Gbps GPON/EPON ONU receiver.
