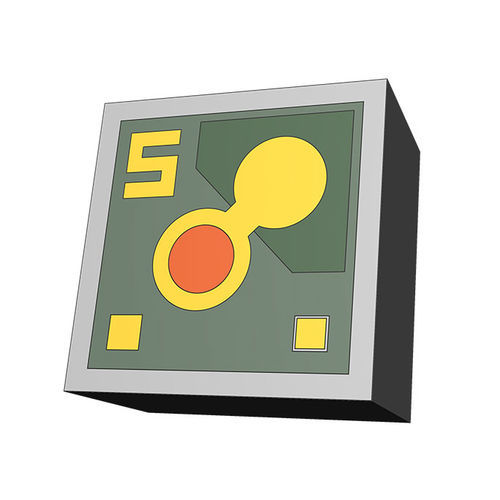

Avalanche photodiode XSJ10-APD4-50T

PIN

Description Avalanche photodiode chip (APD chip) is a kind of active device that provides a built-in gain and amplifies the photocurrent. This product features is anode on top and cathode on back, with top-illuminated active area size is Φ50μm for easy optical assembly; high responsivity, high multiplication factor and low dark current. The high-performance 2.5Gbps APD chip and TIA combined TO-CAN can improve the sensitivity of optical receiver, application in enable data transmission for today’s fiber-to-the-home (FTTH). Features 1. Φ50μm active area. 2. Anode on top and cathode on back. 3. Low dark current. 4. Excellent responsivity and high gain. 5. 100% testing and inspection. 6. Excellent reliability: All chips have passed the qualification requirements as specified by Telcordia -GR-468-CORE. 7. RoHS2.0 (2011/65/EU) compliant. Applications 1. 2.5Gbps GPON/EPON OLT receiver (Class C+).
