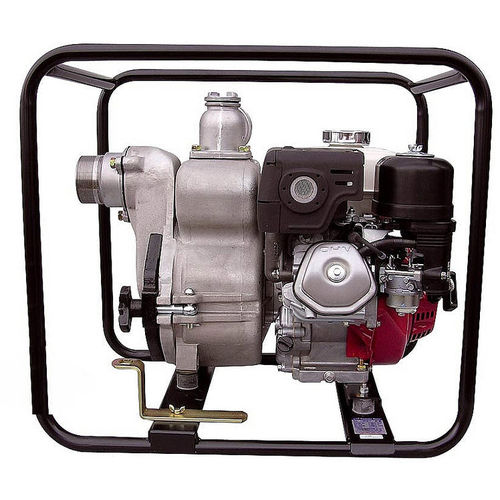

Centrifugal pump GMP35wateroilmanual
Add to favorites
Compare this product
Characteristics
- Technology
- centrifugal
- Fluid
- water, oil
- Operation
- manual
- Priming
- self-priming
- Mobility
- stationary
- Domain
- industrial
- Applications
- lift, suction
- Material
- cast iron
- Fluid specification
- for solids-laden fluids
- Protection level
- ATEX
- Other characteristics
- mechanical, with mechanical seals, tubular
- Flow
78 m³/h
(2,754.544 ft³/h)- Head
Max.: 30 m
(98'05" )Min.: 0 m
(0'00" )- Power
8 ch
(8 hp)
Description
Trash self-priming centrifugal motor pump
Descriptive
Construction materials
HONDA 4-stroke petrol motor (unleaded 95)
Manual pull cord
Aluminium pump, watertight mechanical seal
Ni Hard cast iron vortex turbine
Assembly in a tubular chassis
Delivered with a spark plug wrench, hose coupling, clamps and strainer
Low-oil warning
Specifications and advantages
Trash
Continuous use
Self-priming centrifugal pump
Maximum suction lift: 7 metres
Characteristics
Fluid - Heavy water
Technology - Trash
ATEX - No
Pump - Bare
Max. particle size - 35 mm
Orifice - 3'' and DN75
Max. TDH - 30 m
