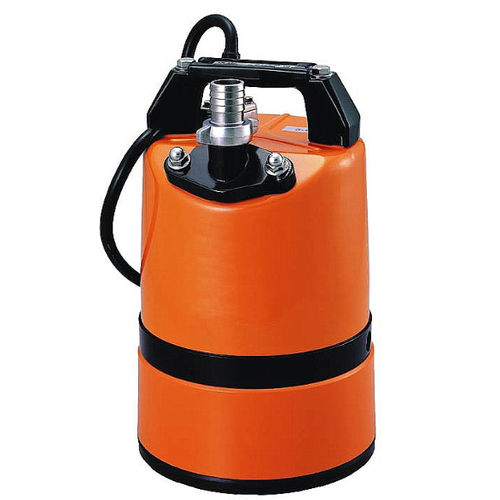

Turbine pump PE-Sfor clear waterelectricsubmersible
Add to favorites
Compare this product
Characteristics
- Technology
- turbine
- Fluid
- for clear water
- Operation
- electric
- Priming
- submersible
- Mobility
- stationary
- Domain
- industrial
- Applications
- drainage, drainage, drying
- Material
- stainless steel
- Voltage
- 380 V
- Other characteristics
- built-in, dry, portable, thermal protection
- Flow
10 m³/h
(353.14667 ft³/h)- Head
Max.: 11 m
(36'01" )Min.: 0 m
(0'00" )- Power
0.48 kW
(0.65 hp)- Fluid temperature
Max.: 40 °C
(104 °F)Min.: 0 °C
(32 °F)
Description
Single-phase portable drainage pump
Descriptive
Specifications and advantages:
For the pumping of muddy and sandy water. Excavation drying.
Designed for prolonged dry running.
The PE-S pump leaves just 1 millimetre of residual water.
Temperature of the pumped liquid: 0 to 40°C.
230 V, 50 Hz single-phase motor with built-in heat protection and 10 m cable.
Maximum permitted particle size: Ø 6 mm.
Aluminium motor casing, stainless steel shaft, urethane turbine, waterproofing by a double mechanical seal with oil chamber.
Optional float.
