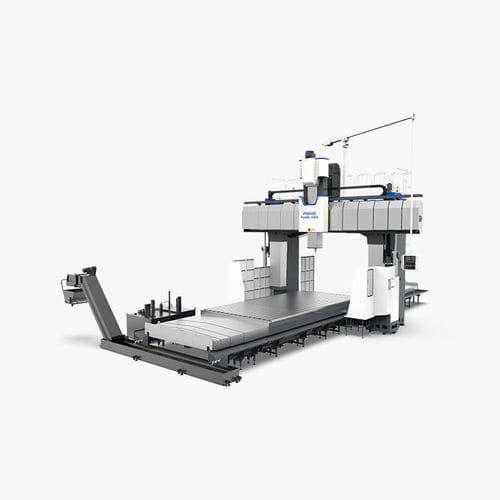

3-axis CNC milling machine PGMB series
verticalbridge40 tools

3-axis CNC milling machine - PGMB series - PONC CNC - vertical / bridge / 40 tools
3-axis CNC milling machine - PGMB series - PONC CNC - vertical / bridge / 40 tools
3-axis CNC milling machine - PGMB series - PONC CNC - vertical / bridge / 40 tools - image - 2
3-axis CNC milling machine - PGMB series - PONC CNC - vertical / bridge / 40 tools - image - 3
3-axis CNC milling machine - PGMB series - PONC CNC - vertical / bridge / 40 tools - image - 4
3-axis CNC milling machine - PGMB series - PONC CNC - vertical / bridge / 40 tools - image - 5
3-axis CNC milling machine - PGMB series - PONC CNC - vertical / bridge / 40 tools - image - 6
3-axis CNC milling machine - PGMB series - PONC CNC - vertical / bridge / 40 tools - image - 7
Add to favorites
Compare this product

Characteristics

Number of axes
3-axis
Spindle orientation
vertical
Structure
bridge
Number of tool stations
40 tools, 60 tools
Associated functions
drilling, tapping
Applications
for molds, for the aerospace industry, heavy-duty
Other characteristics
high-speed, high-precision
X travel

4,200 mm, 6,200 mm, 8,500 mm
(165.35 in, 244.09 in, 334.65 in)

Y travel

4,500 mm
(177.17 in)

Z travel

1,200 mm
(47.24 in)

Rotational speed

4,500 rpm
(28,274 rad.min-1)

Power

22 kW, 33 kW
(29.91 hp, 44.87 hp)

Work feed X-axis

10 m/min

Work feed Y-axis

15 m/min

Work feed Z-axis

10 m/min

Table load capacity

24 t, 36 t, 48 t
(26 us ton, 40 us ton, 53 us ton)

Positioning accuracy

0.015 mm, 0.025 mm, 0.035 mm, 0.04 mm, 0.045 mm
(0.00059 in, 0.00098 in, 0.00138 in, 0.00157 in, 0.00177 in)

Repeatability

0.01 mm, 0.015 mm, 0.025 mm, 0.03 mm, 0.035 mm
(0.00039 in, 0.00059 in, 0.00098 in, 0.00118 in, 0.00138 in)

Weight

80 t, 90 t, 100 t
(88.18 us ton, 99.21 us ton, 110.23 us ton)

Overall length

12,000 mm, 16,000 mm, 20,000 mm
(472.4 in, 629.9 in, 787.4 in)

Overall width

8,500 mm
(334.6 in)

Overall height

8,000 mm
(315 in)

Description

It is suitable for processing oflarge parts, plate parts, disc parts, shell partsmolds and other precision parts. Compared with the fixed-beam machine, the height range of the workpiece islarger, and the W-axis stroke and Z-axis stroke can be superimposed, which caneffectively prevent the ram from extending too long and affect the machiningrigidity. It is widely used in theindustries ofshipbuilding, power generation, heavymachinery, locomotive,aerospace, textile machinery, printing machinery, moldmanufacturing,etc. TRAVELS - W-Axis mm 1300 Distance from spindle nose to worktable mm - 0~2350 Distance between columns mm - 3700 WORKTABLE - Size of worktable - mm - 3000×4000/6000/8000 T-slots specification / - 28×200×13 SPINDLE - Spindle torque N·m - 1076/1614(S1/S6-40%) Cross section of ram mm - 400×400 TOOL MAGAZINE (OPTIONAL) - Max. tool diameter (fully loaded) - mm Ф125 Max. tool diameter (empty loaded) - mm Ф250 Max. tool length - mm - 400 AXIS FEED RATES - Cutting feed rate X/Y/Z m/min 6/6/6 MECHANICAL SPECIFICATION - Required pneumatic pressure - kg/cm² - 6 cnc system - / - SIEMENS/FANUC
