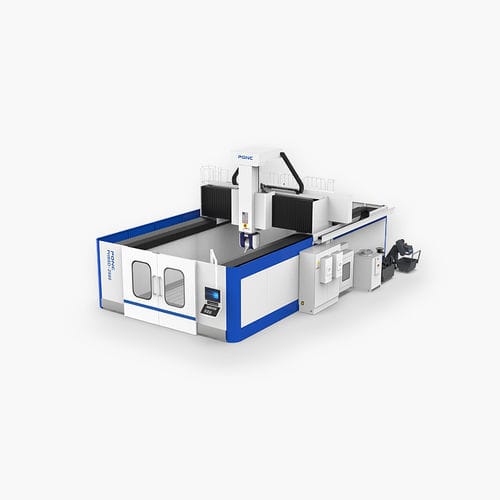

5-axis CNC machining center PHB5D-3040/60/80
verticalfor aluminum alloysfor steel

5-axis CNC machining center - PHB5D-3040/60/80 - PONC CNC - vertical / for aluminum alloys / for steel
5-axis CNC machining center - PHB5D-3040/60/80 - PONC CNC - vertical / for aluminum alloys / for steel
5-axis CNC machining center - PHB5D-3040/60/80 - PONC CNC - vertical / for aluminum alloys / for steel - image - 2
5-axis CNC machining center - PHB5D-3040/60/80 - PONC CNC - vertical / for aluminum alloys / for steel - image - 3
Add to favorites
Compare this product

Characteristics

Number of axes
5-axis
Spindle orientation
vertical
Machined material
for aluminum alloys, for steel, for copper, for aluminum
Structure
gantry
Spindle mount
HSK A-63
Number of tool stations
20 tools
Associated functions
milling, drilling, tapping
Applications
for molds, heavy-duty, for the aerospace industry
Other characteristics
high-precision
X travel

4,000 mm, 6,500 mm, 8,500 mm
(157.48 in, 255.91 in, 334.65 in)

Y travel

3,100 mm
(122.05 in)

Z travel

1,000 mm, 1,250 mm, 1,500 mm
(39.37 in, 49.21 in, 59.06 in)

Rotational speed

6,000 rpm, 18,000 rpm
(37,699 rad.min-1, 113,097 rad.min-1)

Power

56 kW, 70 kW
(76.14 hp, 95.17 hp)

Work feed X-axis

30 m/min

Work feed Y-axis

30 m/min

Work feed Z-axis

30 m/min

Tool weight (max)

5 kg
(11 lb)

Positioning accuracy

0.012 mm, 0.02 mm, 0.025 mm, 0.035 mm, 0.045 mm
(0.00047 in, 0.00079 in, 0.00098 in, 0.00138 in, 0.00177 in)

Repeatability

0.008 mm, 0.012 mm, 0.015 mm, 0.02 mm, 0.025 mm
(0.00031 in, 0.00047 in, 0.00059 in, 0.00079 in, 0.00098 in)

Weight

57 t, 73 t, 88 t
(62.83 us ton, 80.47 us ton, 97 us ton)

Overall length

8,300 mm, 10,800 mm, 12,800 mm
(326.8 in, 425.2 in, 503.9 in)

Overall width

7,800 mm
(307.1 in)

Overall height

5,700 mm
(224.4 in)

Description

The bridge-type design is used, with large processing parts range and high processingprecision. A/C axis multi-angle, multi-azimuth, multi-angle processing, to meet differentprocessing needs. TRAVELS - Distance from spindle nose to worktable mm - 0~1250 Distance between columns mm - 3900 WORKTABLE - Size of worktable - mm - 3000×4000/6000/8000 Max. worktable load T/m² 5 Pitch of T slot - / - 22H7;250 SPINDLE - Spindle torque N·m - 89/111(S1/S6) Cross section of ram mm - 500×500 TOOL MAGAZINE (OPTIONAL) - Max. tool diameter (fully loaded) - mm Ф80 Max. tool diameter (empty loaded) - mm Ф150 Max. tool length - mm - 250 AXIS FEED RATES - Cutting feed rate X/Y/Z m/min 15/15/15 MECHANICAL SPECIFICATION - Required pneumatic pressure - kg/cm² - 6 cnc system - / - SIEMENS/FANUC
