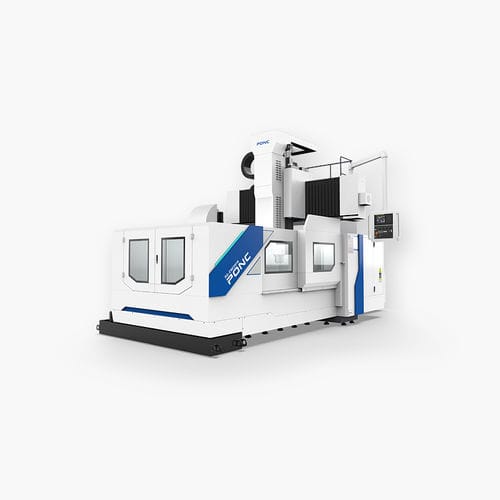

3-axis CNC milling center PG-2016verticalbridgeBT 50
Add to favorites
Compare this product
Characteristics
- Number of axes
- 3-axis
- Spindle orientation
- vertical
- Structure
- bridge
- Spindle mount
- BT 50
- Applications
- heavy-duty
- X travel
2,000 mm
(78.74 in)- Y travel
1,650 mm
(64.96 in)- Z travel
800 mm
(31.5 in)- Rotational speed
6,000 rpm
(37,699 rad.min-1)- Power
18.5 kW
(25.15 hp)- Work feed X-axis
15 m/min
- Work feed Y-axis
15 m/min
- Work feed Z-axis
12 m/min
- Table load capacity
4 t
(4 us ton)- Positioning accuracy
0.01 mm, 0.015 mm, 0.02 mm
(0.00039 in, 0.00059 in, 0.00079 in)- Repeatability
0.015 mm
(0.00059 in)- Weight
19 t
(20.94 us ton)- Overall length
6,400 mm
(252 in)- Overall width
3,800 mm
(149.6 in)- Overall height
3,100 mm
(122 in)
Description
1.Integrated with function of drilling, boring, miling, expanding, reaming, rigid tapping, linear interpolationcircular interpolation, helical interpolation, and three-coordinate linkage.
2.The bed and workbench are made of high-strength and high-quality cast iron, molded with resin sand.
TRAVELS
Workpiece passing height - mm - 1100
Distance between columns
mm - 1660
WORKTABLE -
Size of worktable (width x length)
mm - 1300 x 2000
T-slot width/distance - mm -
7-22/170
FEED -
Cutting feed X/Y/Z -
mm/min
10/10/8
LUBRICATION AND COOLING SYSTEM -
Lubrication system - Automatic -
Coolant system - Water cooling -
MECHANICAL SPECIFICATION -
Required pneumatic pressure - kg/cm² - 6~9
cnc system - / -
SIEMENS/FANUC
