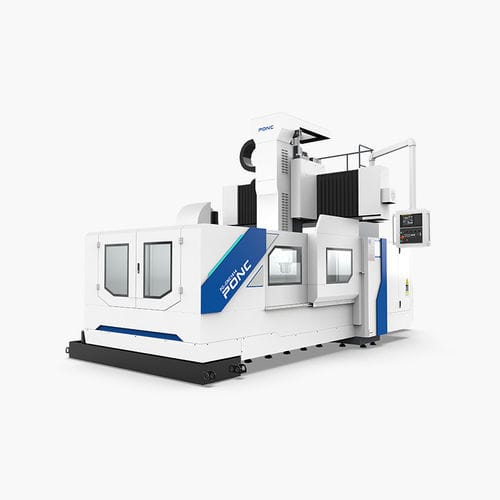

3-axis CNC milling center PG-1614

verticalbridgeBT 50

　　1.Integrated with function of drilling, boring, miling, expanding, reaming, rigid tapping, linear interpolationcircular interpolation, helical interpolation, and three-coordinate linkage. 　　2.The bed and workbench are made of high-strength and high-quality cast iron, molded with resin sand. TRAVELS - unit - Parameter X-Axis - mm - 1600 Y-Axis - mm - 1500 Z-Axis - mm - 800 Distance from spindle nose to worktable - / - 150~950(BT50) Workpiece passing height - mm - 1030 Distance between columns mm - 1500 WORKTABLE - Size of worktable (width x length) mm - 1200 x 1700 T-slot width/distance - mm - 7-22/170 Max.load - T - 2.5 FEED - Rapid on X - m/min - 15 Rapid on Y - m/min - 15 Rapid on Z - m/min - 12 Cutting feed X/Y/Z - mm/min 10/10/8 LUBRICATION AND COOLING SYSTEM - Lubrication system - Automatic - Coolant system - Water cooling - ACCURACY - X-Axis Positioning accuracy - mm - 0.02 Y/Z-Axis Positioning accuracy mm - 0.015/0.01 X/Y/Z-Axis Repeatability accuracy mm - 0.015 MECHANICAL SPECIFICATION - Required pneumatic pressure - kg/cm² - 6~9 cnc system - / - SIEMENS/FANUC Machine height - mm - 3800 Floor area - mm - 5800x4850 Machine weight - T - 13.5
