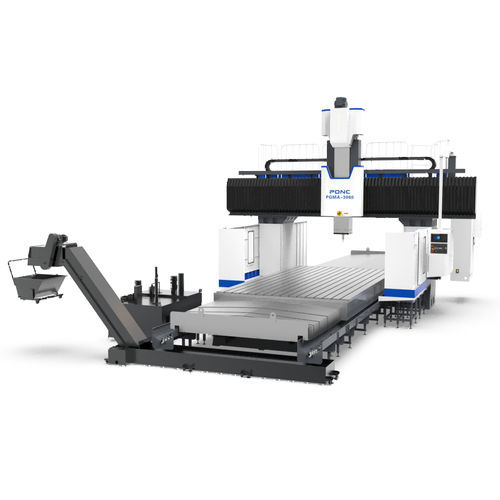

Heavy-duty CNC milling center PGMA series

3-axisverticalbridge

It is suitable for processing oflarge parts, plate parts, disc parts, shell partsmolds and other precision parts. The X-axis is supported by four rolling guide rails, and the Z-axis adopts a squareram structure constrained by four sides, with excellent machining rigidity. Z-axis feed is driven by double motors and double screws, with betterinertiamatching and dynamic response. It is widely used in the industries ofshipbuilding, power generation, heavymachinery,locomotive,textile machinery, printing machinery, moldmanufacturing,etc. TRAVELS Distance from spindle nose to worktable mm - 300~1900 Distance between columns mm - 3700 WORKTABLE - Size of worktable - mm - 3000×4000/6000/8000 T-slots specification / - 28×200×13 SPINDLE - Spindle torque N·m - 1873/2810(S1/S6-40%) Cross section of ram mm - 450×450 TOOL MAGAZINE (OPTIONAL) Max. tool diameter (fully loaded) - Ф125 mm Ф112 mm Max. tool diameter (empty loaded) Ф250 mm Ф200 mm Max. tool length 400 mm - 300 mm AXIS FEED RATES - Cutting feed rate X/Y/Z m/min 6/6/6 MECHANICAL SPECIFICATION - Required pneumatic pressure - kg/cm² - 6 cnc system - / - SIEMENS/FANUC
